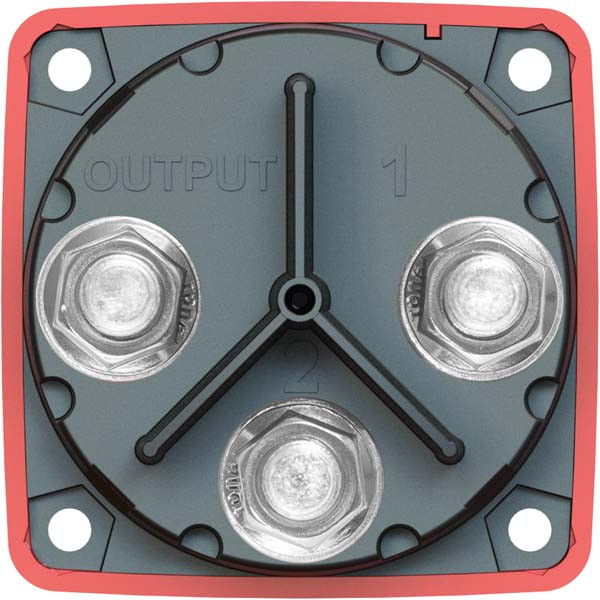

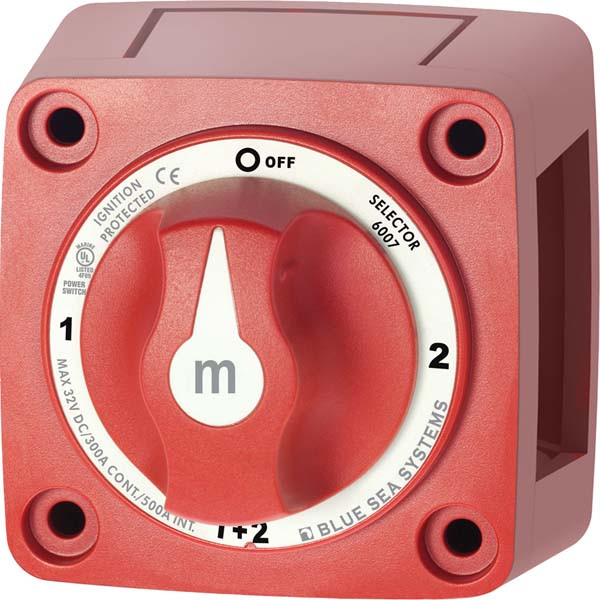

Blue Sea M Series (Mini) Battery Switch 1/2/ALL/OFF
Switches isolated battery banks to all loads or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption
Features:
- 300 Amps continuous rating for outboards and small gasoline or diesel engines
- Tin-plated copper studs for maximum conductivity and corrosion resistance

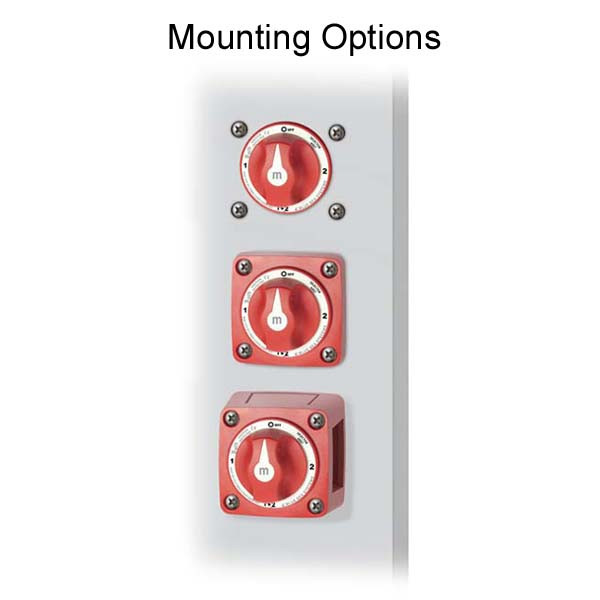

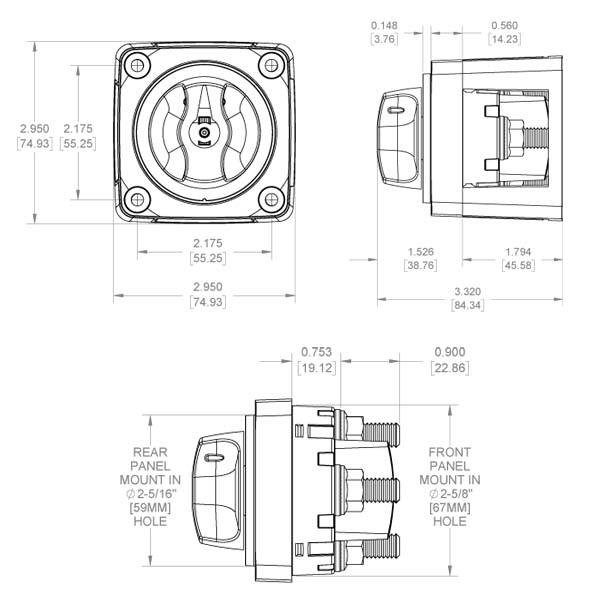

- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- Cranking Rating: 10 sec. 1,500 Amps
- Intermittent Rating: 5 min. 500 Amps
- Voltage Max. Opening 32V DC
- Studs accepts 3/8" (M-10) ring terminals
- Terminal Stud Torque 120 in-lb (13.56 Nm) max.
- Mounting Holes Accept #10 Screw
- 7/8" (22mm) stud length accepts multiple cable terminals
- One-piece terminal stud never loosens over time
- Available in black or red
