Blue Sea ML-RBS Remote Battery Switch 12V DC 500A - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

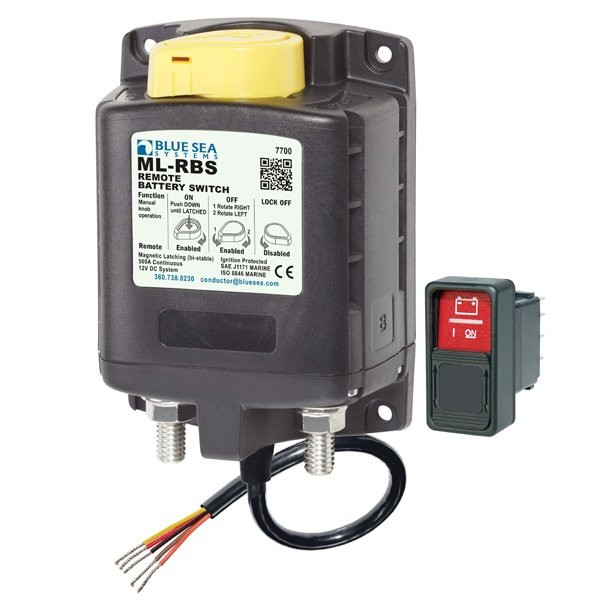

Blue Sea ML-RBS Remote Battery Switch w/ Manual Control 12V DC 500A

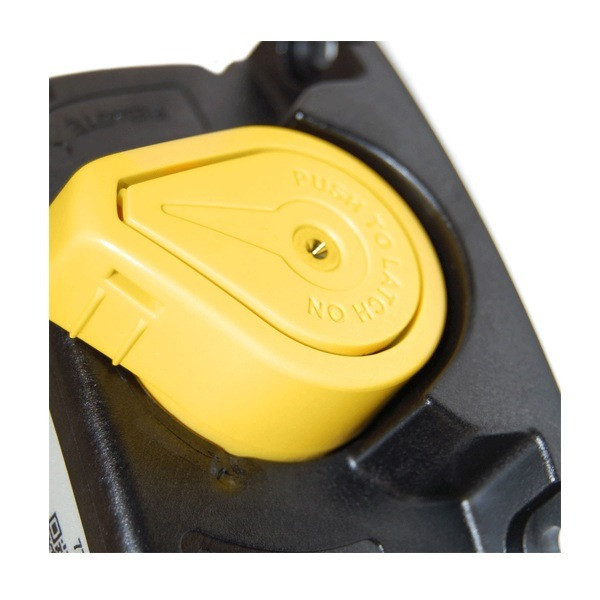

The ML-RBS Remote Battery Switch provides high amperage switching under load, manually or from remote locations. This 500 Amp magnetic latching switch features label recesses for circuit identification. A manual override knob provides an added level of safety, allowing control with or without power and offering LOCKED OFF capability for servicing.
Features an LED output to remotely indicate switch state - requires optional LED. 3/8"-16 tin-plated copper studs provide maximum connectivity and corrosion resistance. 7/8" stud length accepts multiple cable terminals. The silver alloy contacts provide high reliability for switching live loads.
Control Circuit Connection: Tinned Wire
Nominal Voltage: 12V DC
Manual Control: Yes
Coil Function: Bi-Stable
Mounting: #10
Terminal Stud Torque: 140 in-lb
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A
Cranking Rating 30 sec: 1450A DC
Live Current Switching: 300A @ 12V DC
Terminal Ring Diameter Clearance: 1.18in
Terminal Stud Length: 0.875in
Terminal Stud Size: 3/8" - 16
