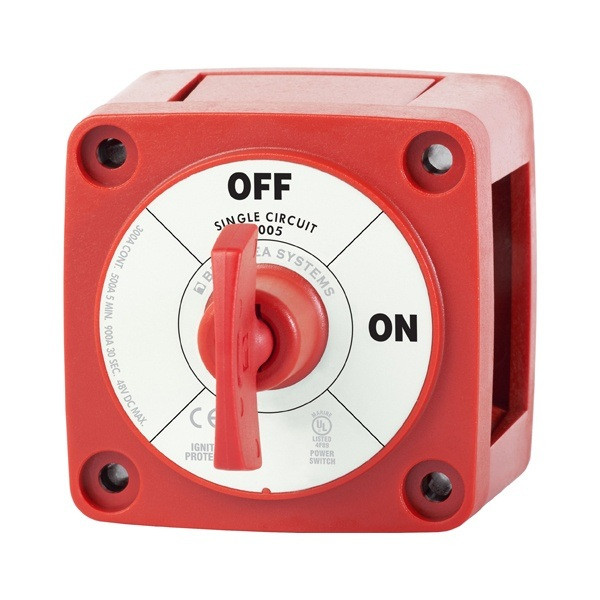

Blue Sea M-Series Mini Single Circuit Switch w/ Key

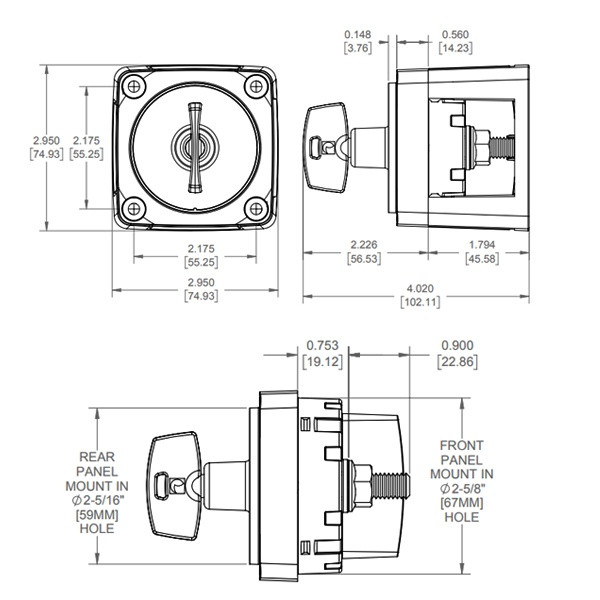

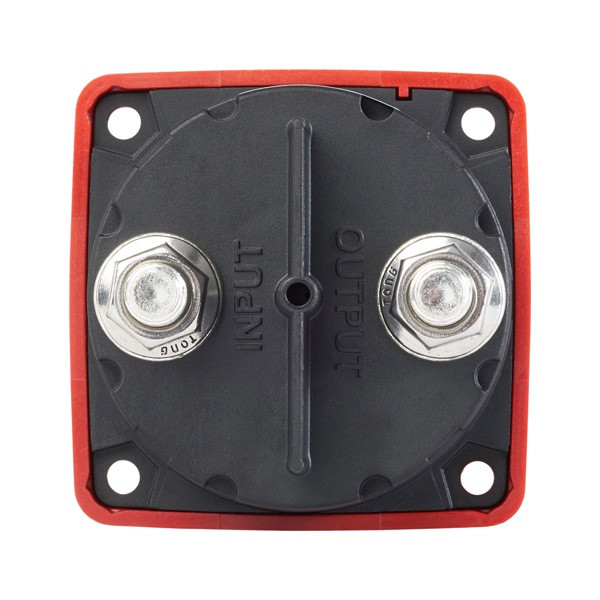

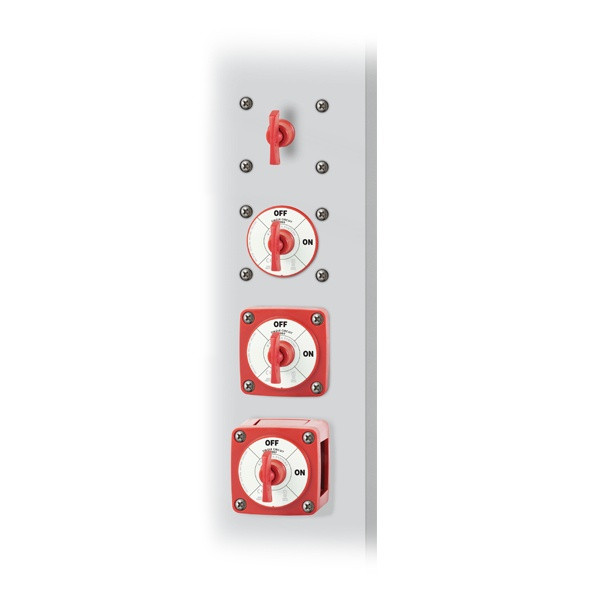

The Blue Sea Mini Single Circuit Battery Switch switches a single battery to a single load group. This battery switch features a case design that allows surface, front panel, or rear panel mounting. The one-piece terminal stud design never loosens over time; studs are tin-plated copper for maximum conductivity and corrosion resistance. The isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction. This Battery switch meets all ABYC requirements for battery switches and is UL 1107 listed for electric power switches. Meets UL 1500 and SAE J1171 external ignition protection requirements
Features:
- Switches single battery to single load group
- Tin-plated copper studs
- Studs accept 3/8" ring terminals
- One-piece terminal stud design
- Meets ABYC E-11 requirements
- Meets SAE J1171 and UL 1500 requirements
Specifications:
- Switch Type: Single Circuit ON-OFF
- Switch Positions: 2
- Maximum Voltage: 48V DC
- Stud Size: 3/8"
- Terminal Stud Torque: 120 in-lb
- Continuous Rating: 300A
- Intermittent Rating: 500A
- Battery Inputs: 1
- Cable Size to Meet Ratings: 4/0 AWG
- Mounting Holes: Accepts #10 Screw
- Weight: 0.62 lb.
Click to Download Blue Sea Mini Single Circuit Switch Instructions
