Blue Sea m-Series Mini On-Off Battery Switch w/ Knob - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

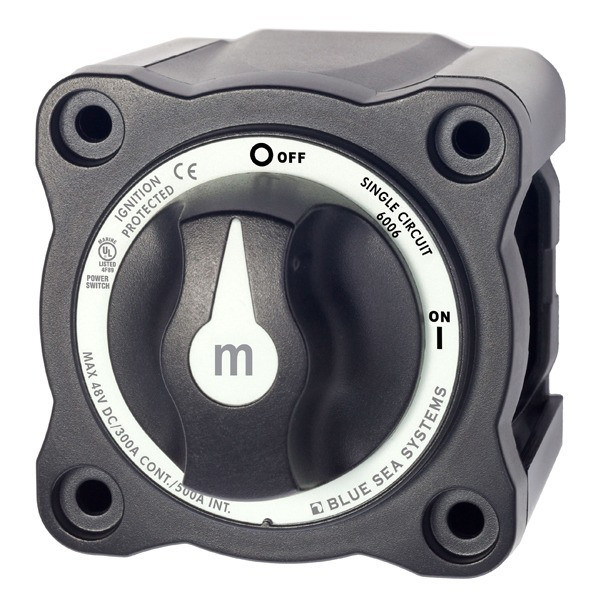

Blue Sea m-Series Mini On-Off Battery Switch w/ Knob
The Blue Sea m-Series Mini On-Off Battery Switch switches a single battery to a single load group. This switch has a removable knob for security and service lockout and allows for surface mounting, and front or rear panel mounting.
Blue Sea m-series battery switches provide 300 Amps continuous rating for outboards and small gasoline or diesel engines. These battery switches are built with tin-plated copper studs for maximum conductivity and corrosion resistance. The one-piece terminal stud design never loosens over time, while one-piece stainless flange nuts ensure safe and secure connections. Each m-series switch has breakout tabs that allow for wire access in any direction.
Specifications:
- Switch Type: Single Circuit ON-OFF
- Color: Black
- Switch Positions: 2
- Maximum Voltage: 48V DC
- Terminal Stud Torque: 120 in-lb.
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Battery Inputs: 1
- Cable Clearance for 4/0 AWG Cables: 1.12 in.
- Cable Size to Meet Ratings: 4/0 AWG
- Mounting Holes: Accepts #10 Screw
- Terminal Stud Size: 3/8" - 16
- Weight: 0.65 lb.
Meets all American Boat and Yacht Council (ABYC) requirements for battery switches.
