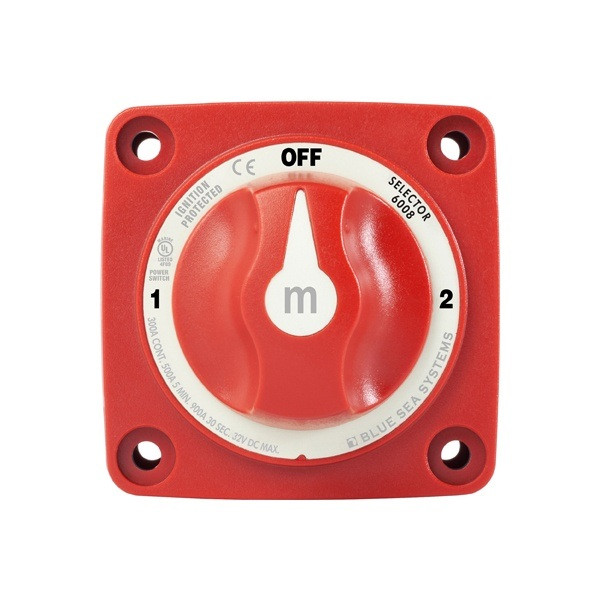

Blue Sea "M" Series Battery Switch - 3-Position
This Blue Sea "M" Series Battery Switch - 3-Position is ignition protected making it safe for installation aboard gasoline powered boats. It switches a single battery to a single load group. The case design allows for surface or rear panel mounting. This 3-Position "M" series battery switch is an ideal choice among many.
Features:

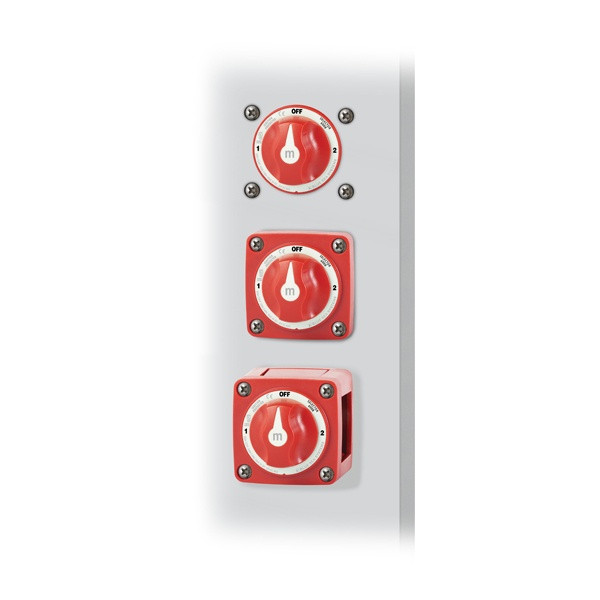

- Case Design Allows For Surface Or Rear Panel Mounting
- Ignition Protected
- Safe For Installation Aboard Gasoline Powered Boats
- Switches A Single Battery To A Single Load Group
Specifications:
- Maximum Voltage: 32V DC
- Switch Positions: 3
- Continuous Rating: 300A
- Battery Combine: No
- Switch Type: Selector 3 Position
- Intermittent Rating: 500A (5 Min)
- Color: Red
- Alternator Field Disconnect: No
- Cranking Rating 30 Seconds: 900A
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Battery Inputs: 2
- Cable Size To Meet Ratings: 4/0 AWG (120mm²), 4/0 AWG (130mm²)
- Mounting Holes: Accept #10 Screw
- Cable Clearance For 4/0 AWG Cables: 1.12 in (28.45 mm)
Click to Download Blue Sea's Battery Management Wiring Schematics
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 6008-BSS |
| UPC | 632085060084 |
| Dimensions | 3" L × 3.88" W × 6.62" H |
| Shipping Weight | 0.77 lb |
| Shipping Box | 6x6x6" |
