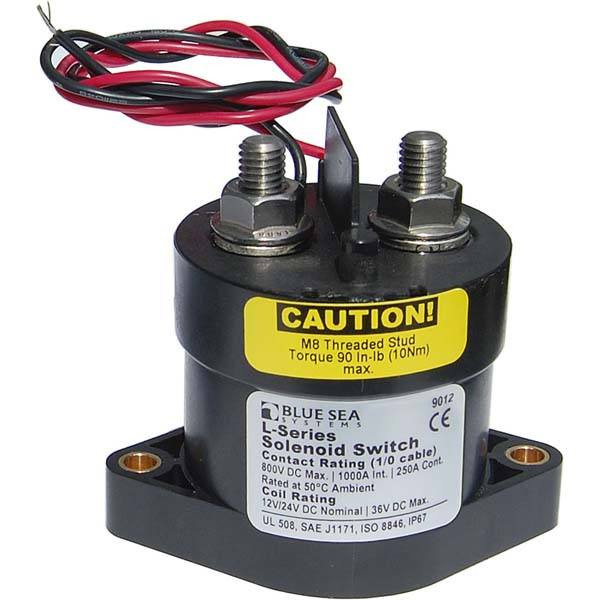

Blue Sea Systems L-Series Solenoid Switch 12-24V
Features:
- Hermetically sealed contacts / vaporproof
- Ignition protected - safe for installation aboard gasoline powered boats
- Can function as a remote battery switch
- Activated by an ON-OFF switch mounted anywhere
- Integrated coil control minimizes heating and amperage draw
- CE Marked
- 450 Amp Class
- Designed for 12 or 24 Volt systems
- Ignition protected -- safe for installation aboard gasoline-powered boats
- Can function as a remote battery switch
- Activated by a low amperage ON-OFF switch mounted anywhere
| Specifications | |
|---|---|
Control Circuit Connection  | Tinned Wire |
| Nominal Voltage | 12V DC 24V DC |
| Coil Function | Normally Open |
| Mounting | #10 |
| Operating Amperage Current | 3.6A when changing state |
| Amperage Operating Current continuous | 0.13A @ 12 V 0.07A @ 24 V |
| Continuous Rating | 250A 300A 400A 450A |
| Intermittent Rating | 275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min) |
| Contact Form | SPST-NO |
| Cranking Rating 30 sec | 1,000A |
| Input Voltage | 8.5-36V DC |
| Inrush Rating: 0.25 sec (10 repeats) | 2000A |
| Switching Cycles | 1,000,000 |
| Terminal Stud | Serrated Flange Nut |
| Terminal Stud Length | 0.66in (16.76 mm) |
| Terminal Stud Size | 5/16" (M8) |
| Terminal Stud Torque | 80 in-lb (9.04 Nm) |
| Wire Leads | 20 AWG |
| Weight | 1.00lb (0.45 kg) |
