Blue Sea e-Series Single Circuit ON-OFF Battery Switch - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
12 available
$51.89

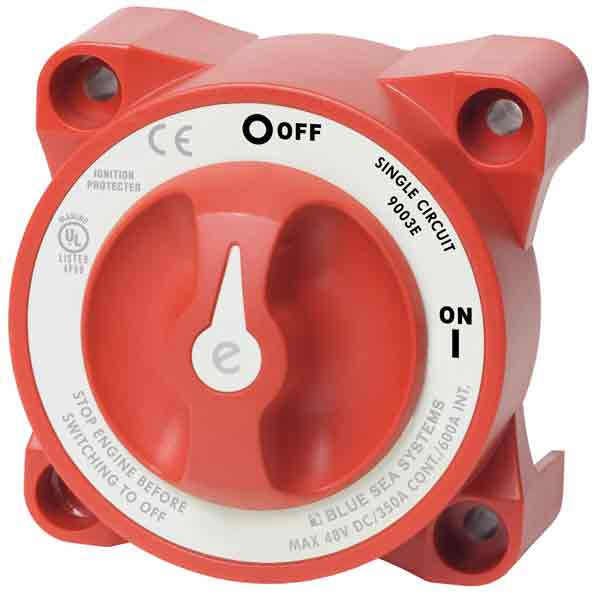

Blue Sea Systems e-Series Single Circuit ON-OFF Switch
Features:
- Ignition protected - safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Cranking Rating: 10 sec. 2,000 Amps
- Intermittent Rating: 5 min. 600 Amps
- Continuous Rating 350 Amps
- Maximum Voltage Rating 48 Volts DC
- Terminal Stud Size 3/8"-16 (M10)
- Terminal Stud Torque 140 in-lb (15.82 Nm) max.
- Mounting Holes Accept 1/4" (M6) Screw
- Cable Size to Meet Ratings 4/0 AWG (95mm2)
- Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)
- Weight 0.95lb (0.43)
- UL Listed - UL 1107 electric power switches
- Meets American Boat and Yacht Council (ABYC) requirements
- Meets UL 1500 and SAE J1171 external ignition protection requirements
- Single Circuit ON/OFF
Click to Download Blue Sea's Battery Management Wiring Schematics
