Blue Sea e-Series Selector Battery Switch w/ AFD - (MW)
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
OH, Warehouse 1
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
1 available
$107.99
Express Checkout

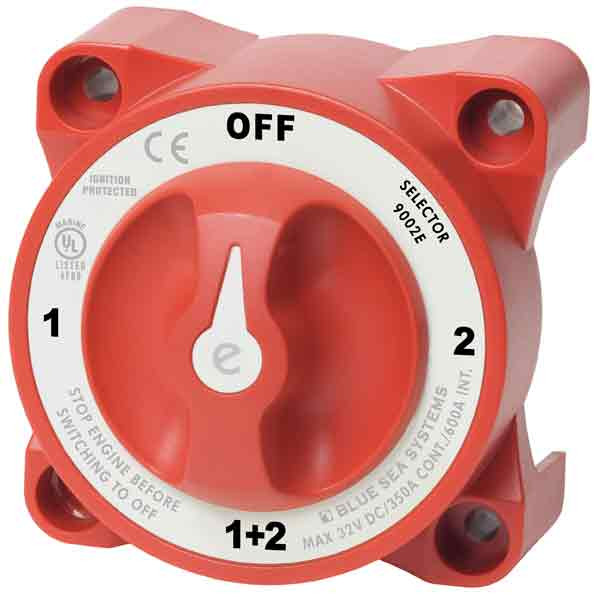

Blue Sea Systems e-Series Selector Battery Switch w/ AFD
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications:
- Switch Type: Selector 4 Position
- Color: Red
- Switch Positions: 4
- Battery Combine: Yes
- Alternator Field Disconnect : Yes
- Maximum Voltage: 32V DC
- Continuous Rating: 350A
- Intermittent Rating: 600A (5 min)
- Cranking Rating 10 sec: 2000A
- Cranking Rating 1 min: 1000A
- Battery Inputs: 2
- Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Mounting Holes: Accept 1/4" (M6) Screw
- Terminal Stud Size: 3/8"-16 (M10)
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Weight: 1.30lb (0.59 kg)
Click here to download Blue Sea Systems E-Series Selevtor Battery Switch Manual
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 9002E-BSS |
| UPC | 632085900250 |
| Dimensions | 2.9" L × 6.38" W × 8.63" H |
| Shipping Weight | 1.3 lb |
| Shipping Box | 10x10x10" |
