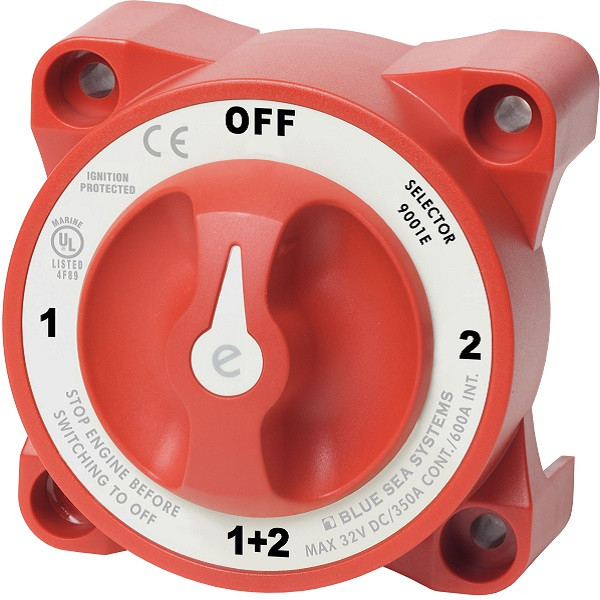

Blue Sea Systems e-Series Battery Switch Selector- 4 Position
Features:
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected - safe for installation aboard gasoline powered boats

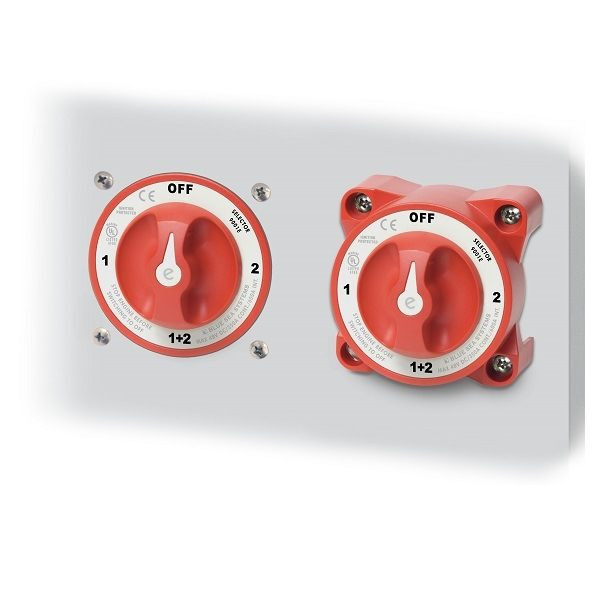

- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Cranking Rating: 10 sec. 2,000 Amps
- Intermittent Rating: 5 min. 600 Amps
- Continuous Rating 350 Amps
- Maximum Voltage Rating 32 Volts DC
- Terminal Stud Size 3/8"-16 (M10)
- Terminal Stud Torque 140 in-lb (15.82 Nm) max.
- Mounting Holes Accept 1/4" (M6) Screw
- Cable Size to Meet Ratings 4/0 AWG (95mm2)
- Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)
- Weight 1.15lb (0.52)
- UL Listed - UL 1107 electric power switches
- Meets American Boat and Yacht Council (ABYC) requirements
- Meets UL 1500 and SAE J1171 external ignition protection requirements
- 4 Position with battery combine
Click to Download Blue Sea's Battery Management Wiring Schematics
