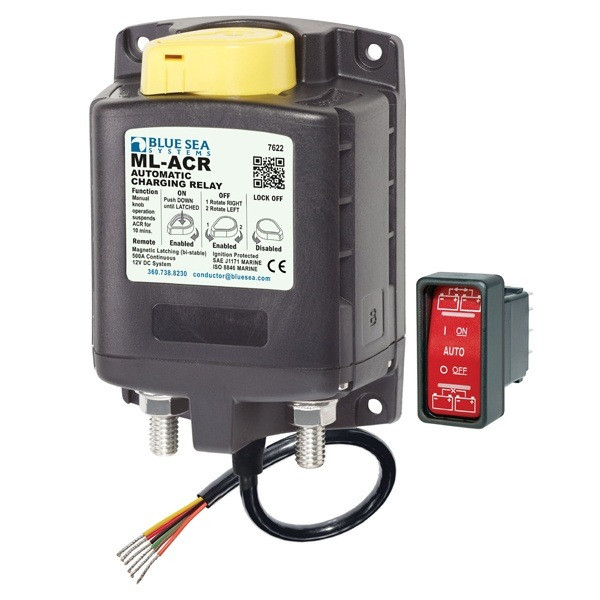

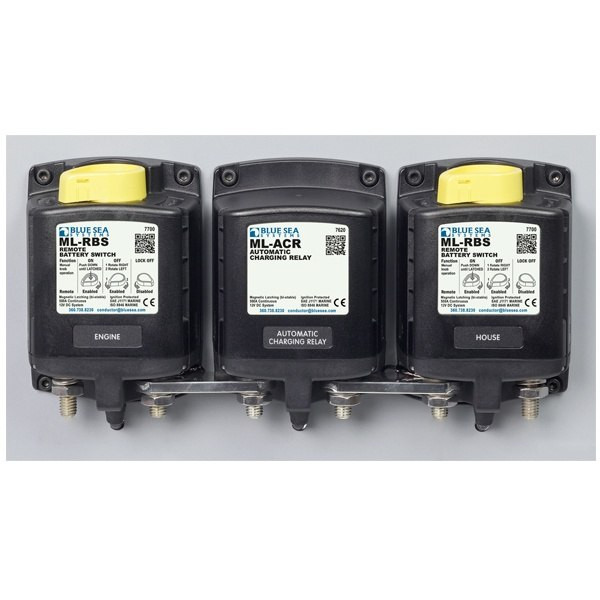

Blue Sea ML-ACR Auto Charging Relay w/ Manual Control
The Blue Sea Auto Charging Relay is a 500 Amp magnetic latching (bi-stable) relay that automatically combines batteries during charging and isolates batteries when discharging and when starting engine. The manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing. The ML-ACR relay draws very low current in the "ON" or "OFF" states, and draws moderate current for a very short time when changing state. Start Isolation (SI) can be configured for temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics. Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output. The Blue Seas Auto Charging Relay also features label recesses for circuit identification.
Features:
- Includes manual control switch
- Includes ML-Series remote control contura switch
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- Dual sensing - senses charge on both battery banks
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout of in Start or Engine isolation
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" Stud length accepts multiple cable terminals
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification
Specifications:
- Nominal Voltage: 12V DC
- Mounting: #10
- Amperage Operating Current: 13mA
- Amperage Operating Current when Changing State: <7.0A
- Terminal Stud Torque: 140 in-lb
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cable Size to Meet Ratings: 4/0 AWG x 2
- Live Current Switching: 300A @ 12V DC
- Terminal Ring Diameter Clearance: 1.12"
- Terminal Stud Length: 1.50"
- Terminal Stud Size: 3/8" - 16 (M10)
- Wire Size: 20 AWG
Dimensions:
Click to Download Blue Sea 7622 Auto Charging Relay Instructions
