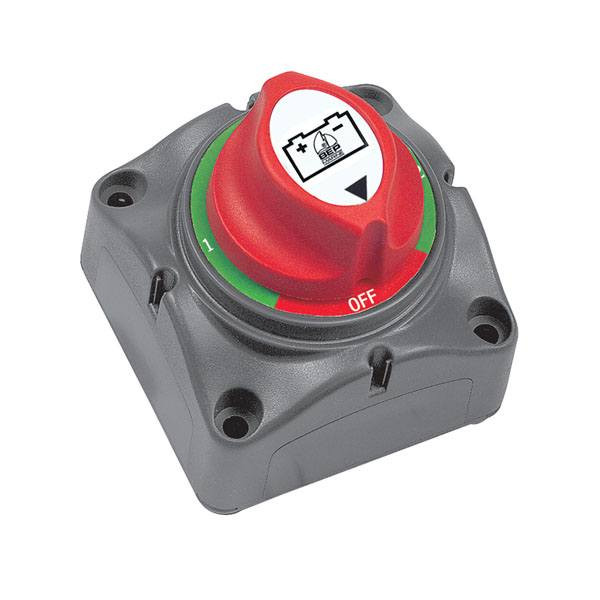

BEP 701S Mini Battery Selector Switch
The BEP 701S Mini Battery Selector Switch is the most compact selector switch available on the market. Constructed of high strength, fiber reinforced plastic, this battery switch is designed for excellent high temperature performance and resistance to chemicals. Three removable side panels allow access of up to 1/0 cables and a rear cover insulates the rear terminals against any short circuits. This combination ensures the switch meets ABYC requirements. Features one, two, both, and off operation.
Please note selector switches will not separate electronics from harmful engine starting spikes.
Features:
- Constructed of molded, high-strength, fiber reinforced plastic
- Excellent temperature performance and resistance to chemicals
- Can be surface or recess mounted by cutting a 2.1" hole
- Tin-plated copper studs and nuts
- Ignition protected
Specifications:
- Dimensions: 2.75" L x 2.75" W x 3" H
- Mounting hole: 2.1"
- Operation: 1, 2, Both, Off
- Continuous Rating: 200 A DC
- Intermittent Rating (5 min): 300 A DC
- Crank Rating (10 sec): 1000 A DC
- Voltage: 48 V DC
- Stud Size: 2 x 3/8" / 10mm
- Cable to meet rating: 3/0 / 95mm²
