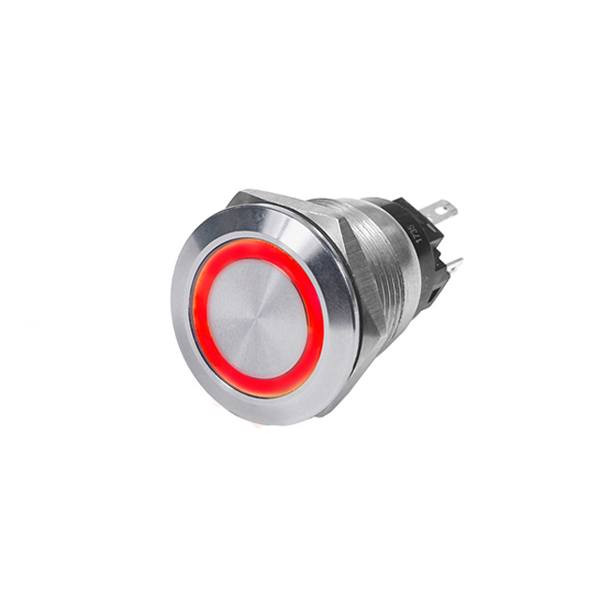

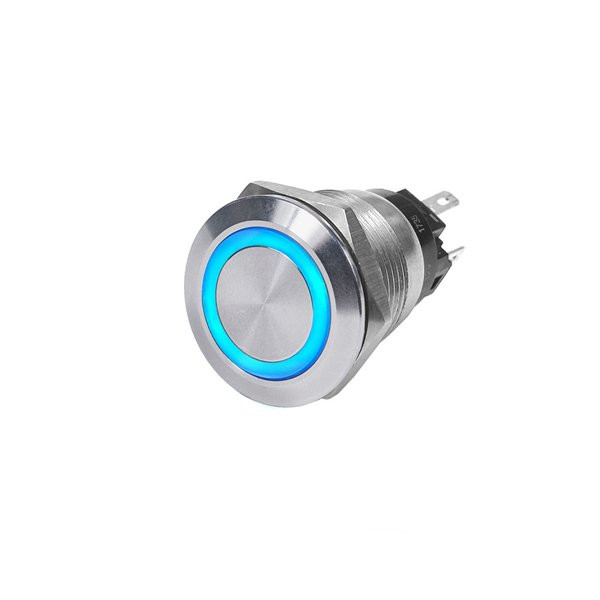

Blue Sea Momentary Push Button Switch - Off/On
The Blue Sea Momentary Push Button Switch - Off/On can be wired normally either open or closed. The installs with .110 inch quick connects and the option of single pole double throw or single pole single throw make this push button switch an ideal choice among many buyers. This switch is available in blue or red.
Features:
- Single Pole Double Throw Or Single Pole Single Throw
- Can Be Wired For Normally Open Or Normally Closed
- 10A Continuous
- Installs With .110 Inch Quick Connects
- Available In Momentary and Non-Momentary
- Available In Blue & Red
Specifications:
- Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs
- Action: OFF-(ON)
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Minimum Storage Temperature: -55° C
- Minimum Operating Temperature: -10° C
- Maximum Storage Temperature: 85° C
- Maximum Operating Temperature: 70° C
- Maximum LED Operating Current: 20mA
- Switching Cycles: 18,000
- Mounting Hole: 19mm
- Illumination: Independent – Separate Contacts For LED Power
- Termination: 5 – 0.110inch Quick Connect Terminals
