Ancor 25' 12 Gauge Tinned Primary Marine Wire - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

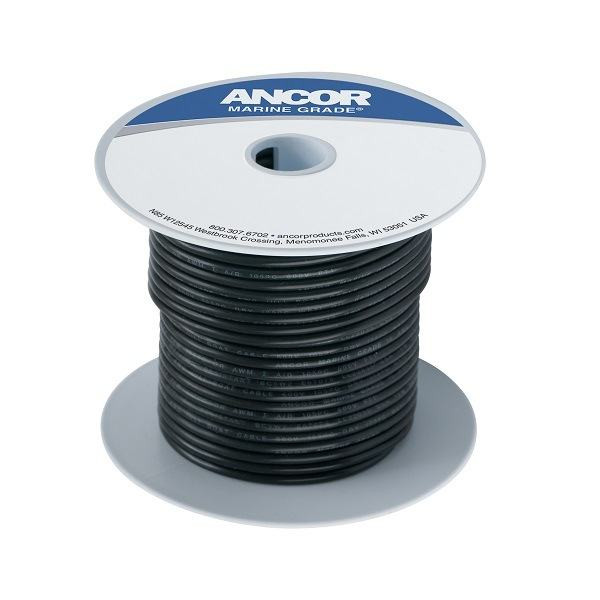

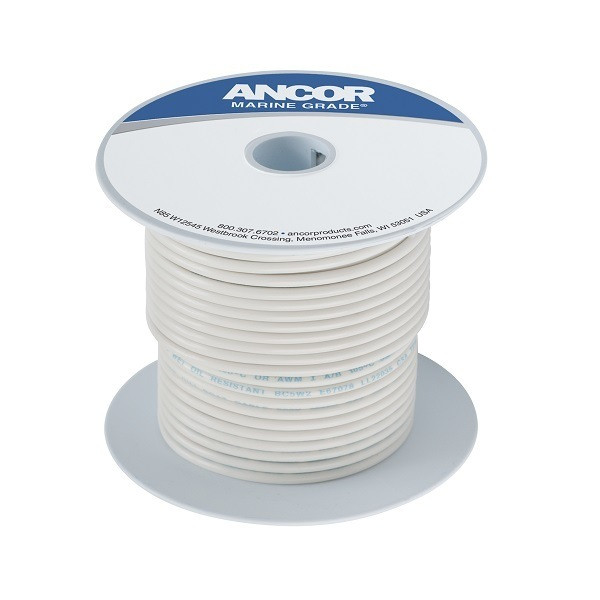

Ancor 25' 12 Gauge Tinned Primary Marine Wire
THIS PRODUCT IS SOLD IN 25' UNITS OF WIRE
Ancor Marine Grade wire and cable is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold (-40°F / -40°C) and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 221°F / 105°C dry and 167°F / 75°C wet, and is resistant to heat and abrasion.
Key Features:
- 10 Gauge Wire
- Manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis
- Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing
- Stays flexible even in extreme cold (-40 deg C) and resists salt water, battery acid, oil, gasoline and ultra-violet radiation.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards.
Specifications:
- Wire Size: 10 AWG
- Nominal O.D.: 7/32" (5.6mm)
- Minimum Bend Radius: 1-29/64" (3.7 cm)
Wire Gauge Chart - Critical Applications (3% Drop)
Wire Gauge Chart - Non-Critical Applications (10% Drop)
