Ancor 2 Gauge Premium Marine Battery Cable - Red - MW

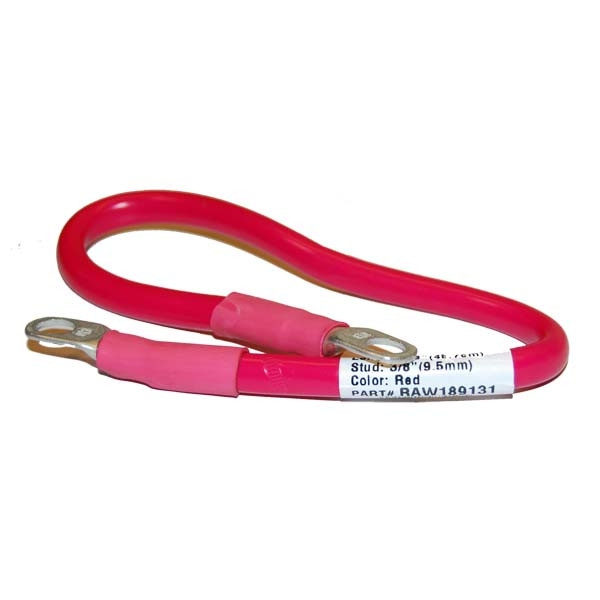

Ancor 2 Gauge Premium Marine Battery Cable - Red
Ancor Marine Grade Standard Battery Cable Assemblies are manufactured with Ancor's premium UL1426 tinned copper battery cable. The battery cable is fine stranded to produce maximum conductivity and flexibility. In addition, all Ancor battery cables are flame retardant, UV inhibited, and rated to 600V and 105˚C. The lugs are tinned copper to avoid corrosion and last longer. Each end has a piece of Ancor's adhesive lined 3:1 heatshrink tubing placed over the electrical connection. The heatshrink tubing seals out moisture and other corrosive elements found in the marine environment, and provides strain relief to ensure a longer lasting battery connection.
Features:
- Red (Positive) battery cable
- Premium, fine stranded UL 1426 tinned copper battery cable for maximum conductivity and flexibility
- Flame retardant, UV inhibited cable rated at 600V and 221°F / 105°C
- Tinned copper lugs to avoid corrosion and extend life
- 3:1 heat shrink tubing over the electrical connection to seal out moisture and provide strain relief
Specifications:
| Part Number | Wire Size | Length | Stud Size |
| 189141 | 2 AWG | 18" (45.7 cm) | 3/8" (9.5 mm) |
| 189145 | 2 AWG | 32" (81.2 cm) | 3/8" (9.5 mm) |
| 189147 | 2 AWG | 48" (121.9 cm) | 3/8" (9.5 mm) |
For continuous current draws up to 178 amps, use 2 AWG battery cable assemblies
