Ancor Triplex Flat Marine Cable 3-Wire - MW

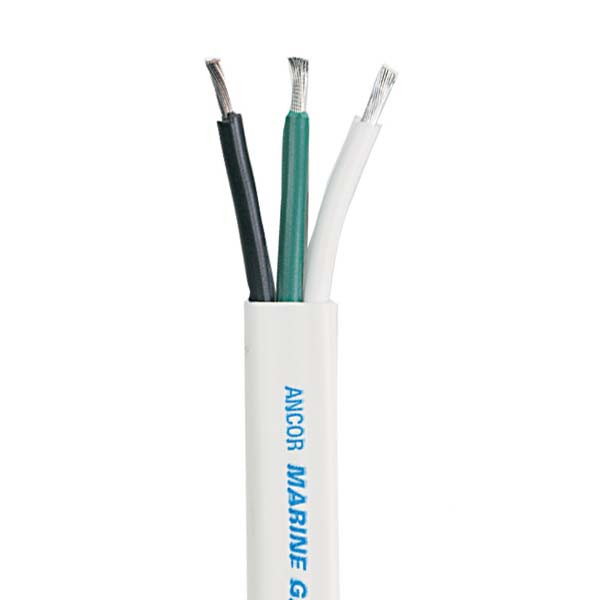

Ancor Triplex Flat Marine Cable 3-Wire
THIS PRODUCT IS SOLD BY THE FOOT
Ancor flat triplex cable features white, green and black Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
- Flat triplex cable with white, green, and black marine-grade primary conductors
- Flat design makes routing long distances easier
- Jacket provides the best abrasion resistance possible and is easy to remove
- Tinned copper stranding provides maximum protection against corrosion and electrolysis
- Exceeds UL 1426 standards
Specifications:
| Part Number | Wire Size | Nominal O.D. | Conductor colors |
| 131310 | 12/3 AWG | 7/32" x 17/32" (6 x 14 mm) | Black, green, & white |
| 131510 | 14/3 AWG | 7/32" x 1/2" (6 x 13 mm) | Black, green, & white |
- Wire Type: Triplex
- Construction: Tinned Copper
- Conductors: One White, One Black, One Green
- Color of Exterior Insulation: White
- Voltage Rating: 600V
- Dry Rating: 221°F (105°C)
- Wet Rating: 167°F (75°C)
- Cold Rating: -40°F/C
- Approvals: UL 1426, ABYC, USCG Charter Boat (CFR Title 46), CSA
