Patriot Docks Premium Floating Dock w/ Poly Decking - MW

Patriot Docks Premium Low-Profile Floating Dock w/ Poly Decking

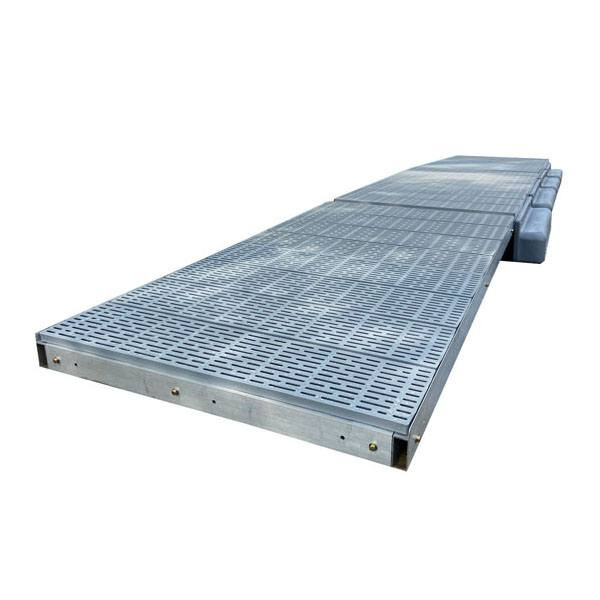

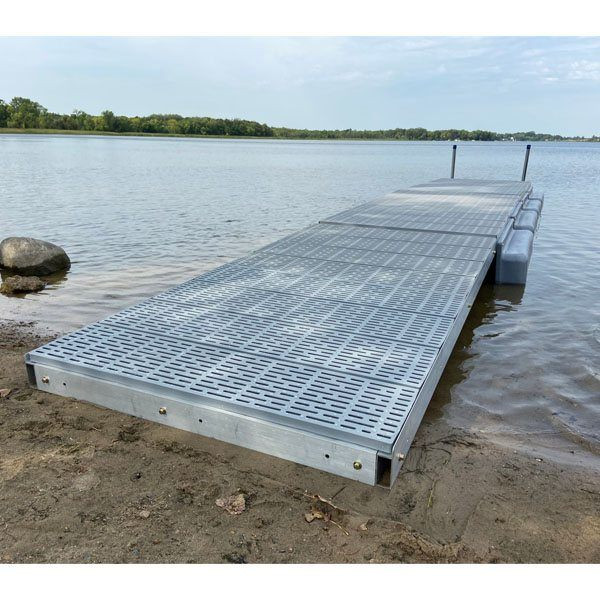

Experience the most durable and versatile floating dock kit on the market with the Patriot Docks Premium Floating Dock Package. Constructed of 6000 series marine grade aluminum, the Premium Floating Dock is designed to sit close to the water surface, allowing for easy access in and out of the water. Measuring 96” x 48” x 4-1/2”, and only weighing 50 lbs., the Premium Floating Dock has a 4’ wide usable walking surface and is easy to manage for seasonal removal or maintenance. The Poly decking features a slotted surface that allows for excellent drainage and sunlight filtration.

The Premium Floating Dock is supported by (2) 48” x 24” x 12” foam filled rectangular floats EVERY 8ft of dock frame, with a total buoyancy rating of 400 lbs. per float. With a UV protected, impact resistant outer shell, these floats will battle the most challenging water conditions. Patriot Docks foam floats provide unmatched performance buoyancy and are U.S. Coast Guard Approved.

Stability is crucial to the performance of any floating dock system. The Patriot Docks Premium Floating Dock includes (4) Side Stability Floats for every 8 ft section of dock frame. The impact resistant HDPE outer shell with EPS foam fill will stand the test of time and abuse in any marine environment. The Side Stability Float measures 43” x 13” x 7” and weighs only 14 lbs. With 150 lbs. of tank tested buoyancy rating, the Side Stability Float will not only increase your docks usable surface area but add critical load support for your floating dock structure.

Features:

• Corrosion-resistant foam helps maintain stability on the water
• Stability floats add critical load support and usable surface area
• To eliminate stress the unique hinge system allows the dock to move with changing water conditions
• The Low-Pro tubular aluminum frame allows the modular floating dock to sit closer to the water than any other dock in the market
• Excellent in deep or fluctuating water levels and extremely soft lake bottoms
• Poly decking is barefoot friendly and stays cool to the touch

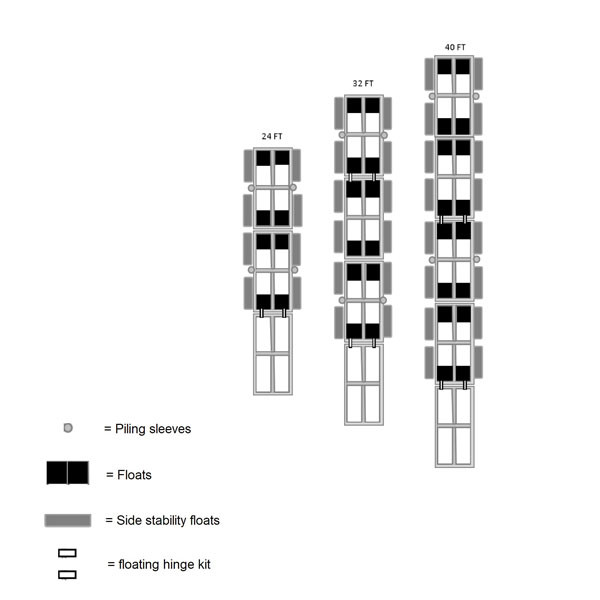

24' Floating Dock Kit Includes:

• (3) 4' x 8' Low profile floating dock frame + hardware
• (4) 48" x 24" x 12" Foam filled rectangular floats + plug
• (4) J-bolt float mounting hardware set
• (8) 43" x 13" x 7" Side stability floats + hardware
• (1) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (6) 4' x 4' Poly deck panels
• Assembly instructions

32' Floating Dock Kit Includes:

• (4) 4' x 8' Low profile floating dock frame + hardware
• (6) 48" x 24" x 12" Foam filled rectangular floats + plug
• (6) J-bolt float mounting hardware set
• (12) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (8) 4' x 4' Poly deck panels
• Assembly instructions

40' Floating Dock Kit Includes:

• (5) 4' x 8' Low profile floating dock frame + hardware
• (8) 48" x 24" x 12" Foam filled rectangular floats + plug
• (8) J-bolt float mounting hardware set
• (16) 43" x 13" x 7" Side stability floats + hardware
• (2) Floating hinge kit + hardware
• (4) 3" Steel piling sleeves + hardware (accepts up to 2" O.D. pipe)
• (10) 4' x 4' Poly deck panels
• Assembly instructions

Vertical piling pipe is NOT included. Customer is responsible for determining acceptable anchoring method.
