AnchorLift Mako 2000 Low Profile Windlass - 3/8" & 5/8"
The Mako 2000 is a compact but powerful vertical windlass that offers silent operation and a low profile design to take up less space on deck. Designed for use with anchors 44 - 99 lbs and boats up to 65' in length. Constructed of 316L stainless steel, the deck unit and vertical shaft provide longer term corrosion resistance to hold up in marine environments and provide trouble free operation. This windlass is able to manual free fall with an adjustable clutch and high speed drop of up to 130' per minute. Works with chain only or chain/rope combination. The Mako 2000 is able to use chain up to 3/8" and rope up to 5/8".
Features:
- Low profile design
- Adjustable clutch
- Easy install
- Manual free fall
- 316L Stainless Steel
- High speed drop

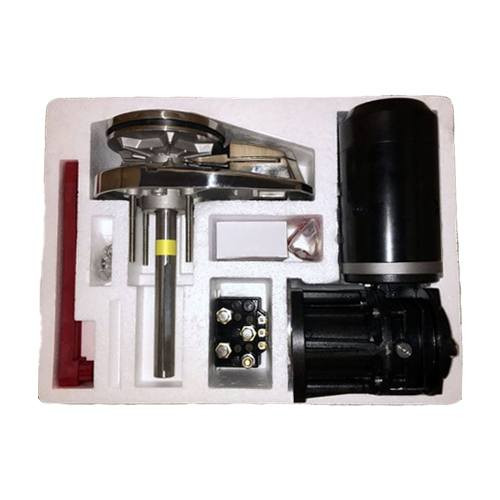

Includes:
- Windlass Unit
- Motor & Gearbox
- Solenid
- Circuit Breaker
- Handle
- Gear Box Backing Plate
- EPDM Base Gasket
- Thread Locker
- Hardware
- Mounting Template
Specifications:
- Designed for: Boats 40' - 65'
- Unit Weight: 50 lbs.
- Shaft Diameter: 1.0"
- Boat Weight: 60,000 lbs.
- Electrical System: 12Volt
- Max Working Load: 1,430 lbs.
- Max Power Pull: 3,300 lbs.
- Mas Speed Down: 130' per minute
- Max Speed Up: 71' per minute
- Chain Size: 3/8"
- Rope Size: 5/8"
- Anchors: 44 - 99 lbs.
- Ground Tackle Weight: 353 lbs.
- Motor: 2000Watts, 12V
- Amp Draw Down: 80Amp, 12V
- Amp Draw Up: 166A, 12V
- Circuit Breaker: 175A
- Cable Size: 2/0 AWG
- Deck Thickness: 1" - 2.5"
Click here for AnchorLift Mako 2000 Low Profile Windlass Installation Guide
