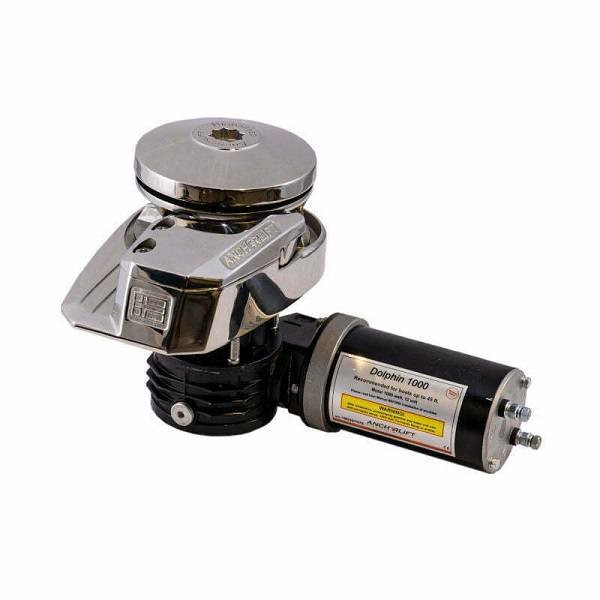

AnchorLift Dolphin 1000 Vertical Windlass - 5/16" Chain 5/8" Rope
The Dolphin 1000 is constructed to provide a long lasting vertical windlass that provides a silent and smooth operation. The low profile design helps take up less space for a cleaner deck with less tripping hazards. The manual free fall feature with an adjustable clutch allows you to have a high speed drop of up to 108' per minute. The Dolphin is able to work with a rope/chain combination or with a chain only setup. The Dolphin 1000 Vertical Windlass is able to use chain up to 5/16" and rope up to 5/8".
Features:
- Low profile design
- Adjustable clutch
- Easy install
- Manual free fall
- 316L Stainless Steel
- High speed drop

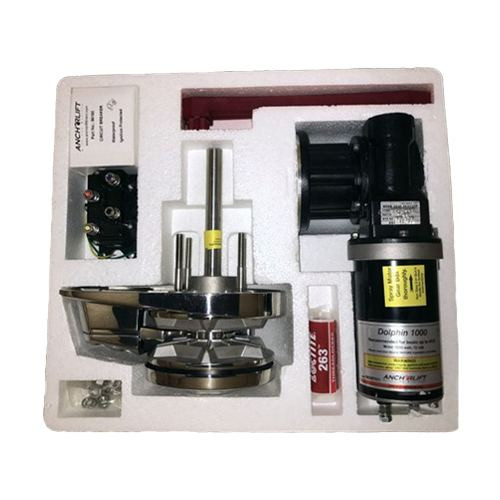

Includes:
- Windlass Unit
- Motor & Gearbox
- Solenoid
- Circuit Breaker
- Handle
- Gear Box Backing Plate
- EPDM Base Gasket
- Thread Locker
- Hardware
- Mounting Plate
Specifications:
- Shaft Diameter: .71"
- Designed for: Boats 35' - 45'
- Boat Weight: 17,600 lbs.
- Electrical System: 12Volt
- Max Working Load 550 lbs.
- Max Power Pull: 1650 lbs.
- Max Speed Down: 108' per minute
- Max Speed Up: 66' per minute
- Chain Size: 5/16"
- Rope Size: 5/8"
- Anchors: 22 - 33 lbs.
- Ground Tackle Weight: 132 lbs
- Motor: 1000Watt 12V
- Amp Draw Down: 24A
- Amp Draw Up: 55A
- Circuit Breaker: 100A
- Cable Size: 2-4 AWG
- Deck Thickness: 1.25" - 2.5"
Click here for AnchorLift Dolphin Windlass Installation Instructions
