AnchorLift Barracuda 600 Vertical Windlass - MW
AnchorLift Barracuda 600 Vertical Windlass - 1/4" Chain 1/2" Rope

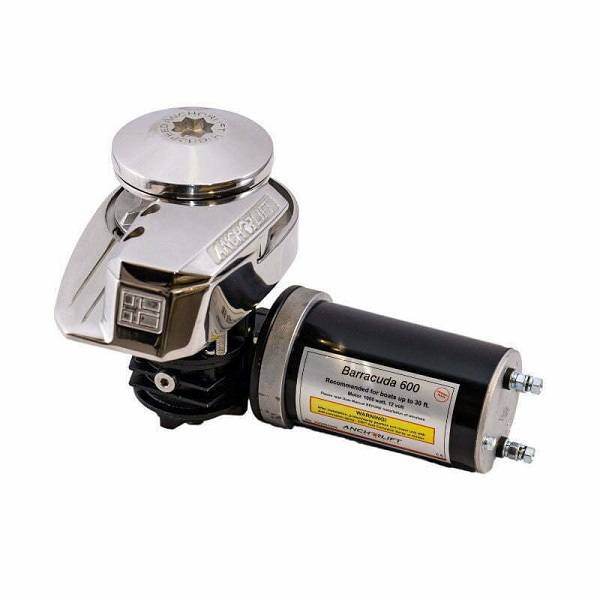

The Barracuda 600 by AnchorLift is constructed to provide a long lasting vertical windlass that provides a silent and smooth operation. The low profile design helps take up less space for a cleaner deck with less tripping hazards. The manual free fall feature with an adjustable clutch allows you to have a high speed drop of up to 115' per minute. The Barracuda is able to work with a rope/chain combination or with a chain only setup. The Barracuda 600 Vertical Windlass is able to use chain up to 1/4" and rope up to 1/2".
Features:
- Low profile design
- Adjustable clutch
- Easy install
- Manual free fall
- 316L Stainless Steel
- High speed drop

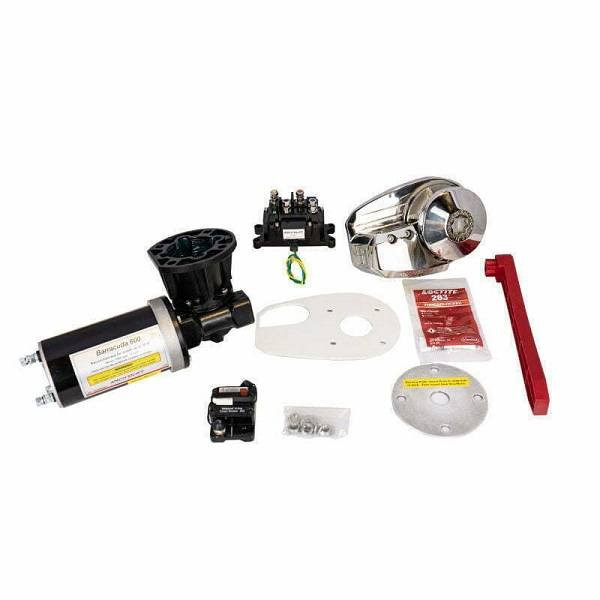

Includes:
- Windlass Unit
- Motor & Gearbox
- Solenoid
- Circuit Breaker
- Handle
- Gear Box Backing Plate
- EPDM Base Gasket
- Thread Locker
- Hardware
- Mounting Template
Specifications:
- Unit Weight: 16 lbs
- Shaft diameter: .55"
- Designed for: Boats 20' - 30'
- Boat Weight: Up to 8,800 lbs
- Electrical System: 12V
- Max working load: 397 lbs
- Max power pull: 1,190 lbs
- Max speed down: 115' per minute
- Max speed up: 85' per minute
- Chain size: 1/4"
- Chain length: 98' - 165'
- Rope size: 1/2"
- Anchors: 13 - 22lbs
- Ground tackle weight: 132lbs
- Motor: 1000Watt, 12V
- Amp draw down: 18Amp
- Amp draw up: 47A
- Circuit breaker: 80A
- Cable size: 2-4 AWG
- Deck thickness: 3/4" - 1.5"
Click here for AnchorLift Barracuda Windlass Installation Instructions
