Lewmar Pro-Sport 550 Windlass - (MW)

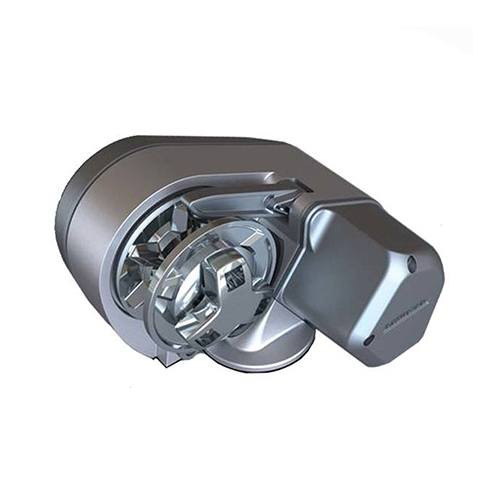

Lewmar Pro-Sport 550 Windlass

Lewmar's Pro-Sport rope/chain windlass is designed as an economical package for rope and chain applications, without compromise to quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors. It's DIY-ready and easy to install. Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier.  A demonstration of Lewmar's commitment to provide stylish, affordable, quality products for boats from 6m-9m (20-30ft).

Includes:

• Windlass
• Base gasket seal
• Fast mounting studs
• Installation wrench
• Contractor (68000939)
• Guarded rocker switch (68000593)
• Circuit breaker

Features:

• For use on boats up to 28ft (9m)
• Powerful motor providing superior line speed
• Low power consumption / current draw
• Dual direction powered operation
• Manual freefall
• Gypsy size, 7mm (1/4")chain
• Convenient above-deck installation
• Comprehensive range of switch gear options available
• 3-year warranty

Specifications:

• Motor Power: 150 W
• Max Pull Strength: 550 lbs.
• Working Load: 137.5 lbs.
• Max Line Speed: 98 ft/min
• Normal Current Draw: 20 A
• Circuit Breaker: 25 A
• Approx. Weight: 14 lbs.

Use with Lewmar 1/2" 3-Strand Premium Anchor Rode with 1/4" G4 Chain

Click here to download Lewmar Pro Sport Windlass User Manual
