SeaStar Pro Kevlar-Reinforced Hydraulic Hose Kit - MW

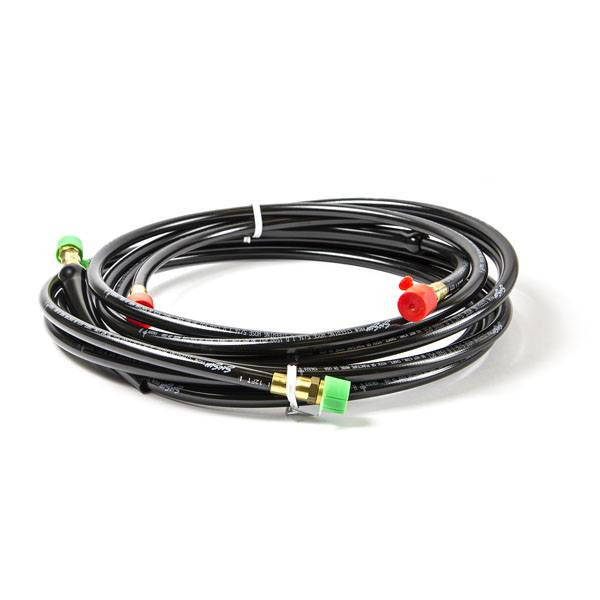

SeaStar Outboard Pro Kevlar-Reinforced Hydraulic Steering Hose Kit
Includes two hoses - can be used with all SeaStar systems, except BayStar Capilano and and 3-line inboard systems.
- For use with the SeaStar PRO steering helms
- Kevlar Reinforced Hydraulic Steering Hose Kit
- Custom Multi-Layered Composite Design with Kevlar Reinforcement for Strength
- Engineered to Provide your Steering System with Very Low Thermal Expansion Properties
- Designed to Exceed SAE and ABYC Specifications and Provide Precise Steering Control
- Kink and Abrasion Resistant
- Factory Swaged Solid Fitting Connection with an O-Ring Seal
- Metal to Metal Backup to the Primary Seal
- Supplied with pre-attached hose fittings on both ends
How to Measure Hydraulic Hoses
New Installation:
Measure hose routing path from wheel center line to engine connection, as follows:
A = Center line of wheel to gunwale (or deck, if routed downward),
B = Dash to transom,
C = Gunwale to centerline of cable connection at centered tiller.
Most cylinders move with the engine/rudder; enough slack must be left in hoses/tubing to prevent sharp bends (less than 3” radius) and/or kinking.
Where rigid tubing is used, flexible hoses must be installed between tubing and cylinder, to allow cylinder articulation.
For Most Cylinders, add A, B & C + 24”, round up to next even foot. Order that length hose kit, or twice that length in tubing.
Hose routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose along cable path and measure run from wheel to engine connection point.
Typical Single Station Routing:
A single, front-mount outboard cylinder system is shown in this diagram.
Replacement of Hydraulic Steering:
If you removed the old hoses, measure for replacement hoses as follows:
Measure existing hose from tip to tip, round up to next even foot. Order that length hose kit, or twice that length in tubing.
