Schaefer 504-11 Series 5 Flat Base/Alum Cheek/Delrin Sheave - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
Purchasing Code Required
To order this product online, please contact us with the quantity you need
and your ZIP / postal code to receive your purchasing code.
Some locations are restricted at this time.
Already have a code? Enter it below to unlock pricing and purchasing.

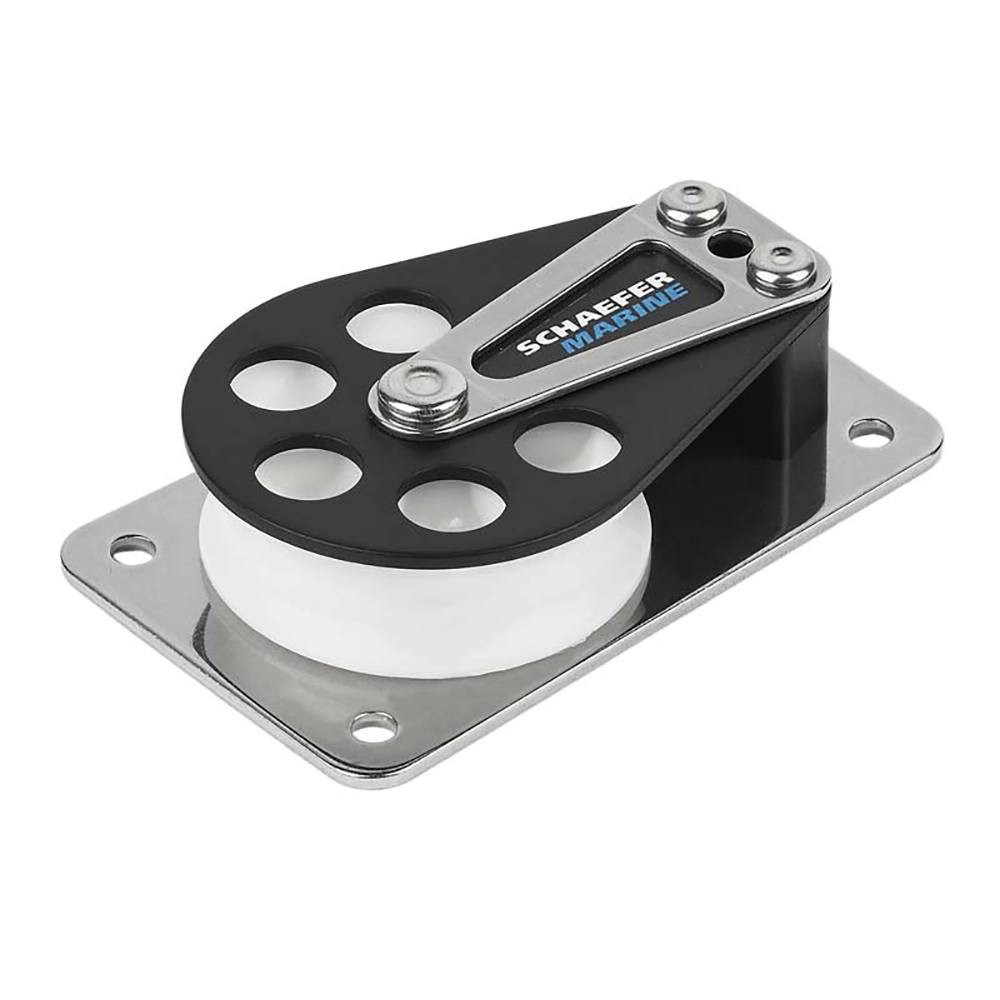

Series 5 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Diameter 2" (51 mm)
- Max. Line 7/16" (11 mm)
- Length 3-5/8" (92 mm)
- Width 2-7/32" (57 mm)
- Height 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm)
- C/C 3" (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 5.9 oz. (167g)
- Max. Line 7/16" (11mm)
