Patriot Docks Straight Roll-In Dock w/ Cedar Decking - MW
Patriot Docks Straight Roll-In Dock with Cedar Decking

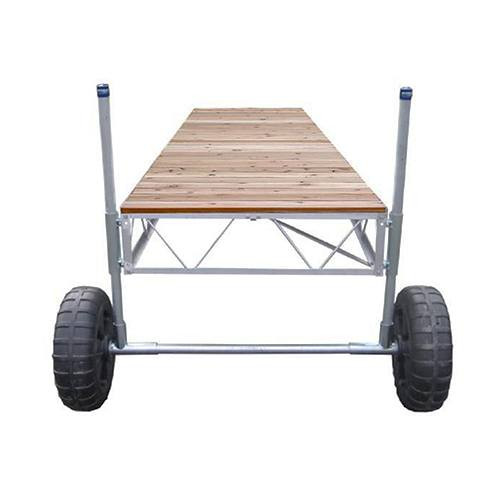

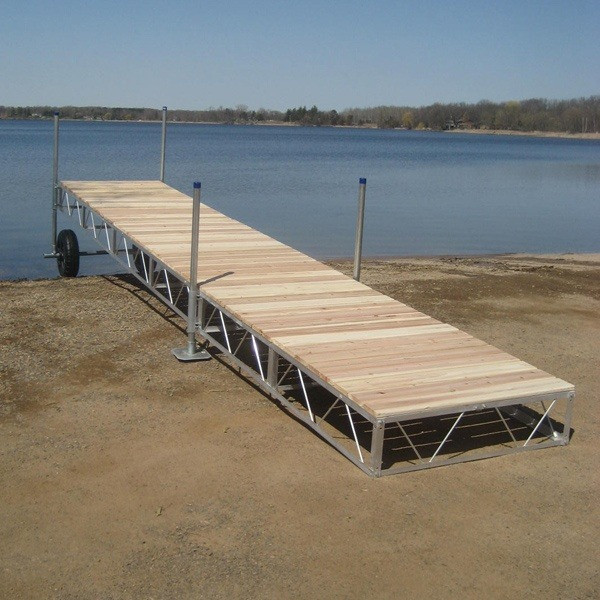

Quickly and easily transition your dock into and out of the water with the Patriot Docks Straight Roll-In Dock with Cedar Decking. Large 24" wheels roll easily to move the dock into storage or to your vehicle. Each aluminum roll-in dock kit comes equipped with one set of wheels on the water end of the dock. 12-in. deep aluminum truss frames are expertly constructed with welded and bolted joints. This Patriot Roll-in Dock uses 7/16 in. diameter aluminum chord rods, unlike the 3/8 in. as seen in most of their competitors. The pipe is fabricated with 1-1/2" schedule 40 electro-galvanized steel, not steel tubing which is prone to bending. Patriot Dock's pipe brackets are extended with two stainless steel bolts as are typical with a standard marine roll-in dock. Patriot Docks Cedar decking is an affordable, beautiful, and incredibly durable decking option. The kiln-dried western red cedar is weather and insect resistant and will offer you many years of service.
Features:
- A limited Lifetime Warranty for both the aluminum roll-in dock frame and its decking.
- The maximum span between each support is 16'.
- Frame’s side lip conceals the decking edges for added safety and to prevent damage.

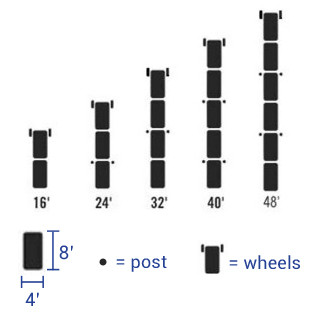

- Standard post lengths at given dock lengths: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
16' Straight Roll-In Dock Kits Includes:
- (2) 4 x 8 Frames
- (4) 4 x 4 Deck Panels
- (1) End Rail
- (2) Post Brackets
- (2) 4' Posts
- (2) Foot Plates for Posts
- (2) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
24' Straight Roll-In Dock Kits Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (4) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
32' Straight Roll-In Dock Kits Includes:
- (4) 4 x 8 Frames
- (8) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
40' Straight Roll-In Dock Kits Includes:
- (6) 4 x 8 Frames
- (10) 4 x 4 Deck Panels
- (1) End Rail
- (6) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) 8' Posts
- (4) Foot Plates for Posts
- (6) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
Click to Download Patriot Docks Assembly Instructions
