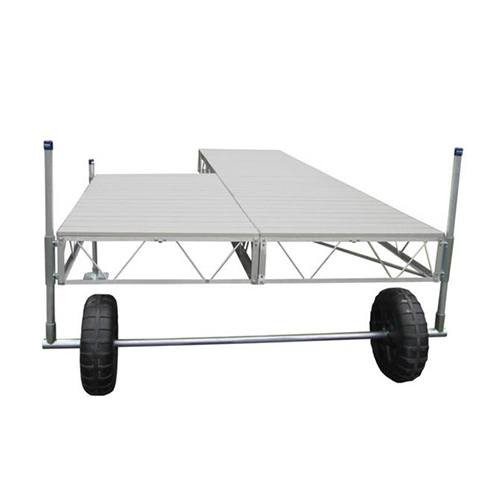

Patriot Docks Patio Roll-In Dock with Gray Aluminum Decking
Roll-in docks have become a popular option for many dock owners and are a great, versatile option to maximize shoreline space. These docks are lightweight and easy to roll in and out of the water, and are designed for easy maneuvering when water conditions change. Patriot Docks is a leading manufacturer of boat docks and the popular roll-in docks.
The Patriot Docks Patio Roll-In Dock is constructed with only the highest quality materials. The truss frames are 12” deep with welded and bolted connections for extra stability. Unlike most of their competitors, the chord rods are constructed with 7/16” diameter aluminum instead of the â…œ”. The piping is 40 electro-galvanized steel that is stronger and more durable than your typical lightweight tubing. Each pipe bracket has not one but two stainless steel bolts. They designed this roll-in dock with longevity and versatility in mind.
Patriot Docks Patio Roll-In Dock comes with a lifetime warranty on the aluminum frame and aluminum decking. When you are shopping for a roll-in dock, this is a great option.

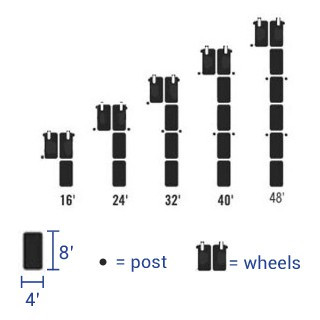

Standard post lengths at given dock lengths: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
Features:
- High truss work allows for more land on the support pipe creating very rigid structure
- 1-1/2″ i.d galvanized schedule 40 pipe axle
- 24″ diameter never-go-flat dock wheels provide easy, worry-free installation and removal
- Light weight removable decking panels that nest into the dock frame
- Constructed of high quality marine grade aluminum for maximum strength and durability
16' Patio Roll-In Dock Kits Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (2) End Rail
- (2) Post Brackets
- (2) 4' Posts
- (1) Foot Plates for Posts
- (2) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
24' Patio Roll-In Dock Kits Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (1) End Rail
- (3) Post Brackets
- (3) 4' Posts
- (3) Foot Plates for Posts
- (3) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
32' Patio Roll-In Dock Kits Includes:
- (4) 4 x 8 Frames
- (8) 4 x 4 Deck Panels
- (2) End Rail
- (4) Post Brackets
- (4) 6' Posts
- (2) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
40' Patio Roll-In Dock Kits Includes:
- (6) 4 x 8 Frames
- (12) 4 x 4 Deck Panels
- (2) End Rail
- (6) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) 8' Posts
- (6) Foot Plates for Posts
- (6) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
Click Here to Download Patriot Docks Assembly Instructions
Click here to see Patriot Dock shipping and delivery agreement & policy
