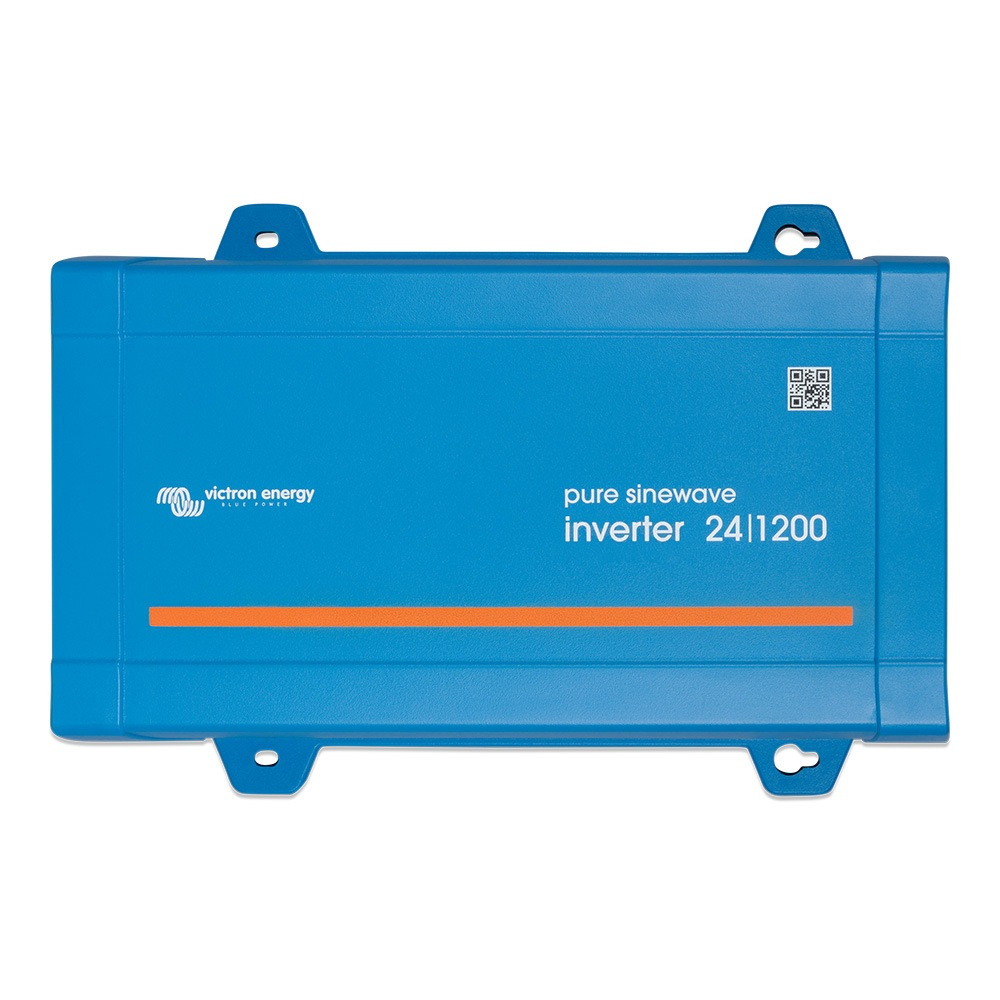

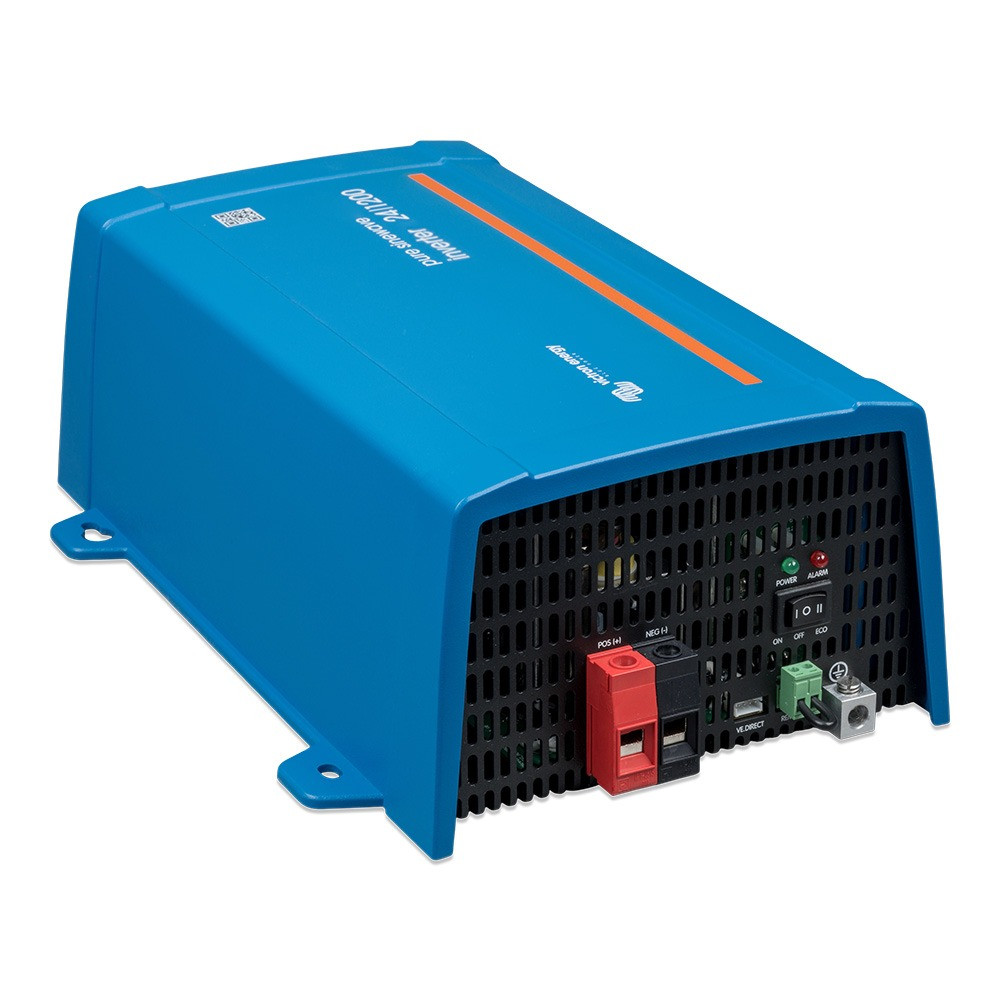

Phoenix Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458

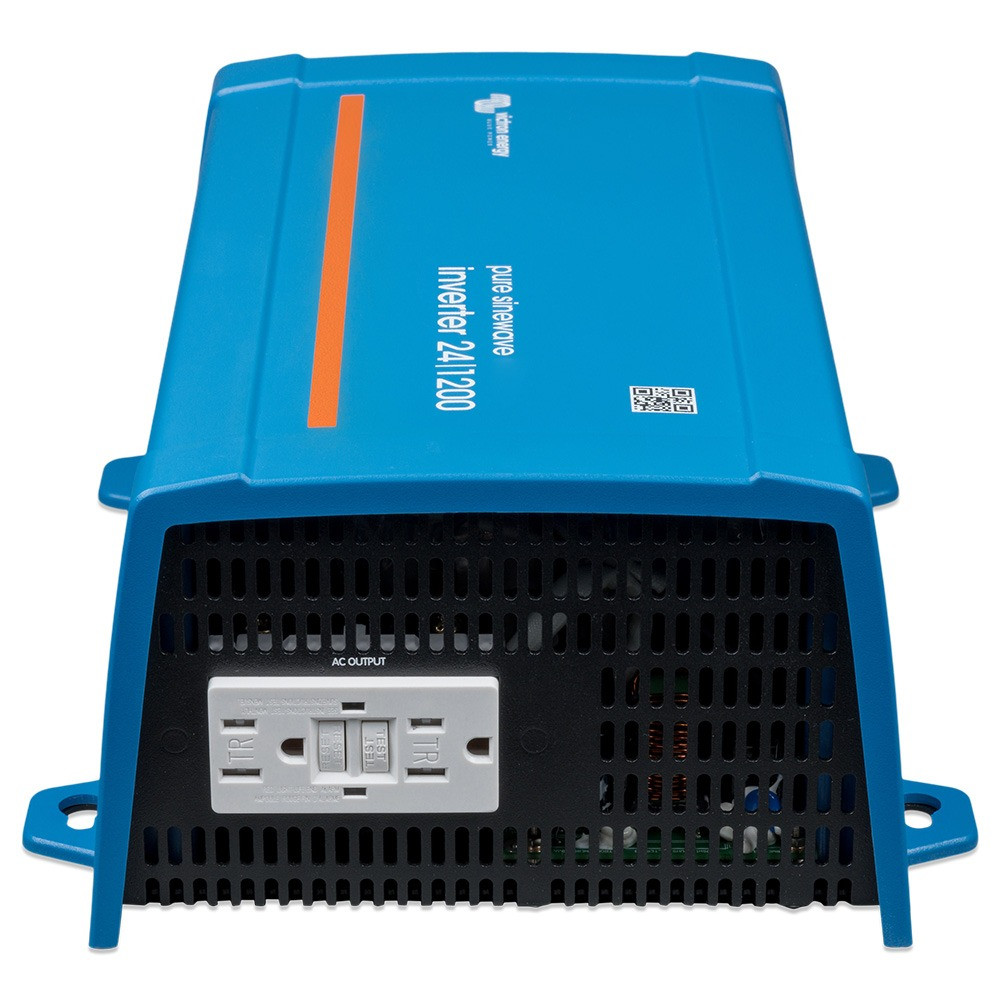

24 Volts DC input, 120 Volts 60 Hz pure sine wave output. This has a single NEMA5-R receptacle as its output. This is the standard GFCI receptacle outlet used in the US. For use in marine applications, this GFCI version is required to comply with ABYC Standard.
Features:
- 1200 VA continuous output at 25 Deg C
- 1000 Watts continuous output at 25 Deg C
- Peak Power 2200 Watts
- Max efficiency 91%
- Zero load power 8 Watts
- Weight 16.3 Lbs Dimensions 4.6" x 9.1" x 12.9"
- Can accept up to 4 AWG battery cable
Specifications:
- AC Connection Type: GFCI Outlet
- DC Connection Type: Hardwire
- GFCI: Yes
- Inverter Cont. Output Wattage: 850W
- Inverter Input Voltage: 24VDC
- Inverter Output Voltage: 120VAC
- Inverter Surge Rating: 2200W
- Outlet Qty: 1
- Waveform: True Sine Wave
- Box Dimensions: 8"H x 12"W x 17"L WT: 19 lbs
- UPC: 8719076054221
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
