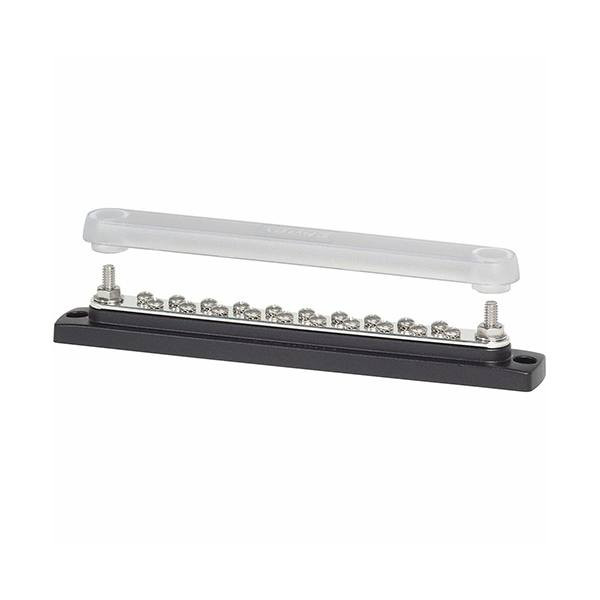

Blue Sea Busbar w/ Cover - 20 Gang 150 Amp
The Blue Sea Busbar features twenty screw terminals, two terminal studs, and includes a clear polycarbonate cover. This BusBar is the industry standard busbar for positive distribution. It is also the industry standard busbar for the collection of negative or AC ground circuits.
Specifications:
- Maximum Voltage: 300V AC, 48V DC
- Number of Screw Terminals: 20
- Number of Terminal Studs: 2
- Terminal Type: 1/4" Stud, #8-32 Screw
- Continuous Rating: 130A AC, 150A DC
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Screw Terminal Torque: 15 in-lb
- Stud Torque: 60 in-lb
- Weight: 0.57 lb.
Dimensions:
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Brand | Blue Seas |
|---|---|
| Manufacturer Part No. | 2312-BSS |
| UPC | 632085023126 |
| Dimensions | 12" L × 2.75" W × 1.75" H |
| Shipping Weight | 0.57 lb |
| Shipping Box | 6x6x12" |
