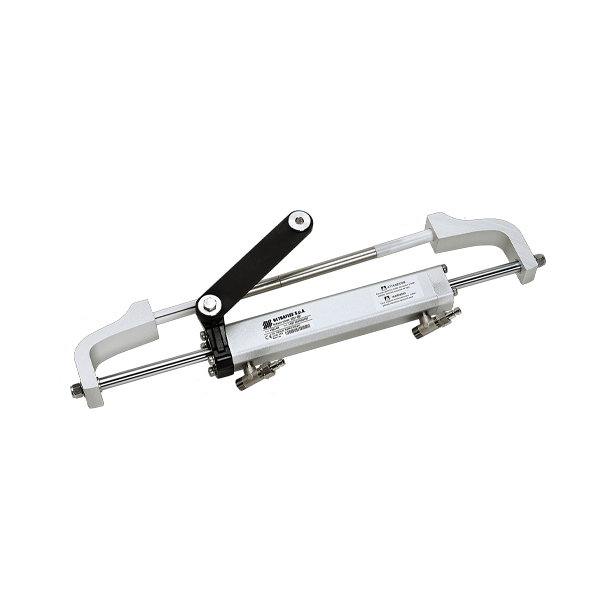

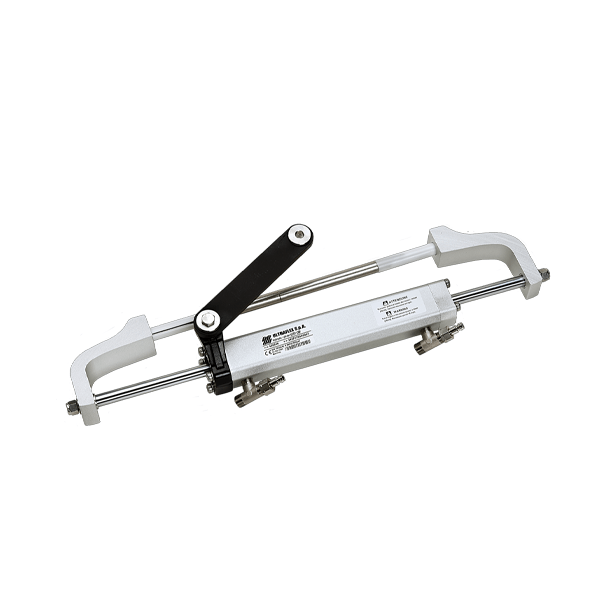

UFLEX Front Mount Outboard Hydraulic Steering Cylinder - UC81-OBF
This front-mount hydraulic steering cylinder from UFlex is engineered for outboard engines up to 115 hp. It features a balanced design, ensuring an equal number of wheel turns lock-to-lock from port to starboard and vice versa. With easily replaceable cylinder end caps and a durable stainless steel connection bolt, the UC81-OBF offers reliable performance and ease of maintenance. Depending on the engine configuration, it can be installed on either the port or starboard side, providing versatile installation options.
Key Features:
- Balanced lock-to-lock turns port to starboard
- Front mount design ideal for outboards up to 115 hp
- Replaceable end caps Simplifies maintenance and extends durability
- Mounts on either port or starboard, depending on engine setup
Specification
- Volume : 81 cc - 4.9 cu.in
- Output Force : 222 kg (489 lbs)
- Inside Diameter 274 mm (1.08")
- Stroke : 186 mm (7.3")
- Flex hose fitting : 3/8"
- Bleed fitting : DN5 quick connect
