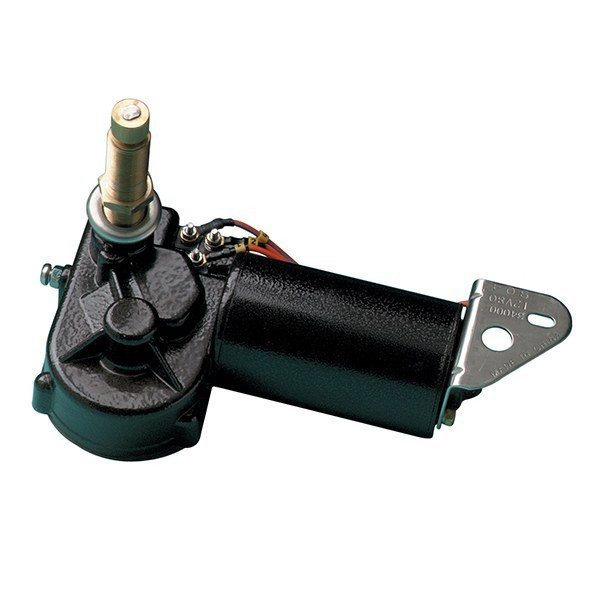

AFI MRV Wiper Motor w/ 2.5" Shaft
The AFI MRV Wiper Motor is a heavy-duty wiper motor featuring a corrosion-resistant casing and stainless steel fasteners and mounting bracket. This motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degrees or less. Although this is a two speed motor, it can be operated as a one speed.
Specifications:
- 12V
- Factory pre-set sweep of 80°
- .625" diameter shaft
- 2.5" shaft length
- Stall torque: 109 in-lbs
- Stall current: 11.5-13.0 amps
- No load current: 0.5-1.2 amps
Features:
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking, coast to park
- Stainless steel fasteners and mounting bracket
Options Available:
- 80° Sweep
- 110° Sweep
California Residents:
WARNING
Cancer and Reproductive Harm -
P65Warnings.ca.gov
Product Specifications
| Brand | AFI |
|---|---|
| Manufacturer Part No. | 34010 |
| UPC | 035028340104 |
| Dimensions | 10" L × 7.3" W × 6" H |
| Shipping Weight | 3.7 lb |
| Shipping Box | 10x10x10" |
