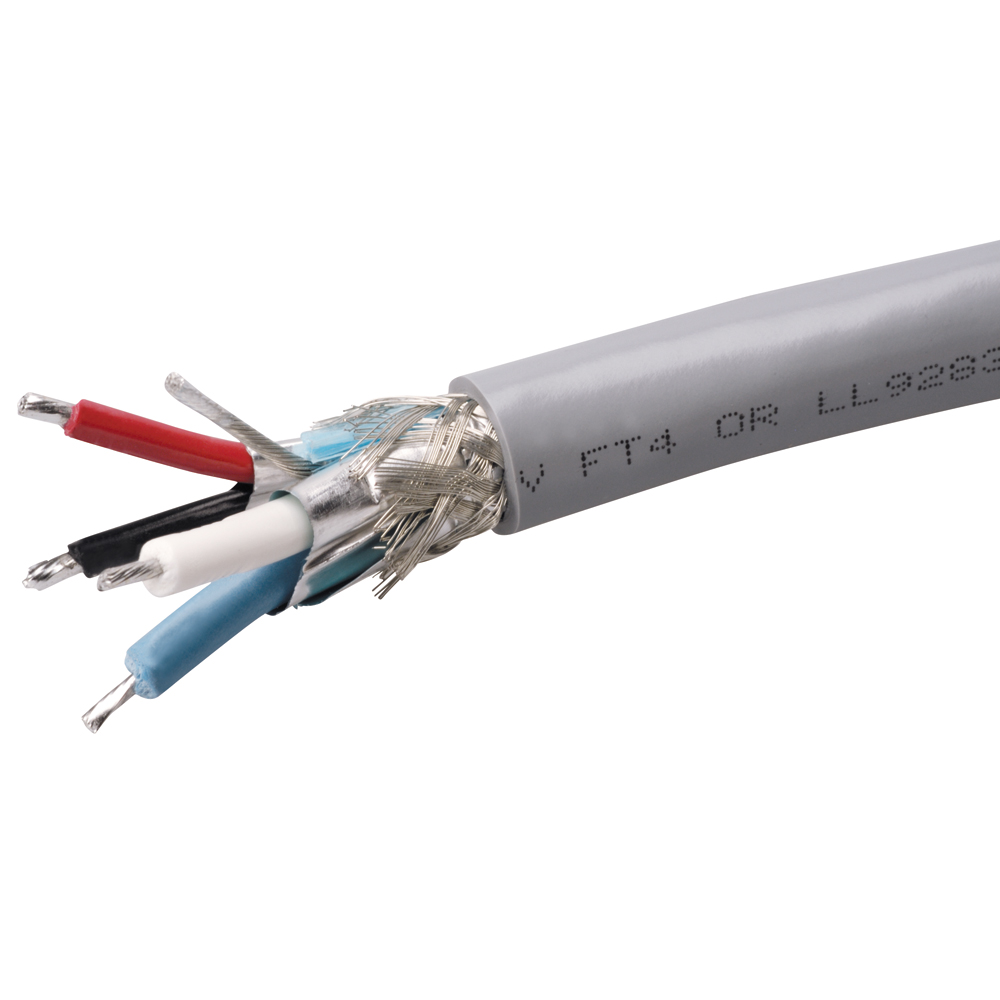

Maretron Mid Bulk Cable - 100 Meter - Gray
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse 4
FL, Warehouse
OH, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
4 available
$738.75
Express Checkout
Specifications
Overall
Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
Insulation Material: PE (data wires), PVC (power wires)
Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
Wire: 2x16 (1.29mm) AWG
Resistance/Conductor: 4.1 Ohms/1000 ft max
Max Amperage: 14 Amps Color Code: Red/Black
Data Pair
Wire: 2x20 (0.81mm) (AWG)
Characteristic Impedance: 120 Ohms +/- 10%
Capacitance: 10.75 pF/ft
Color Code: White/Blue
Approvals
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC-61162-3
Overall
Power Pair
Data Pair
Approvals
Product Specifications
| Dimensions | 12" L × 12" W × 11" H |
|---|---|
| Shipping Weight | 25 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8544.11.00.50 |
