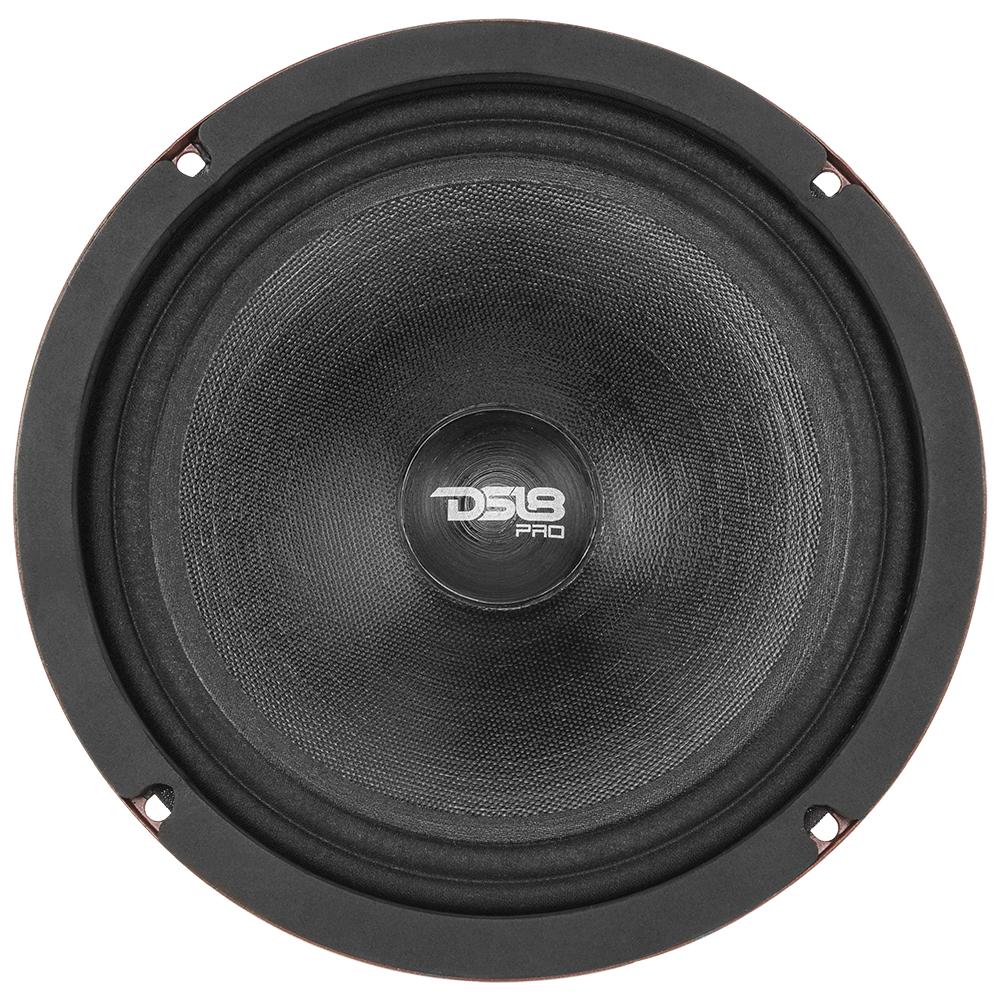

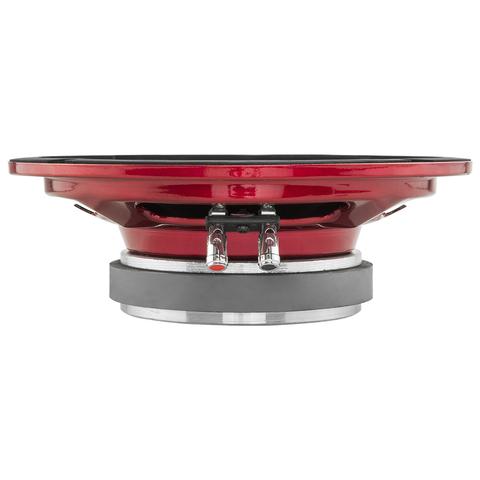

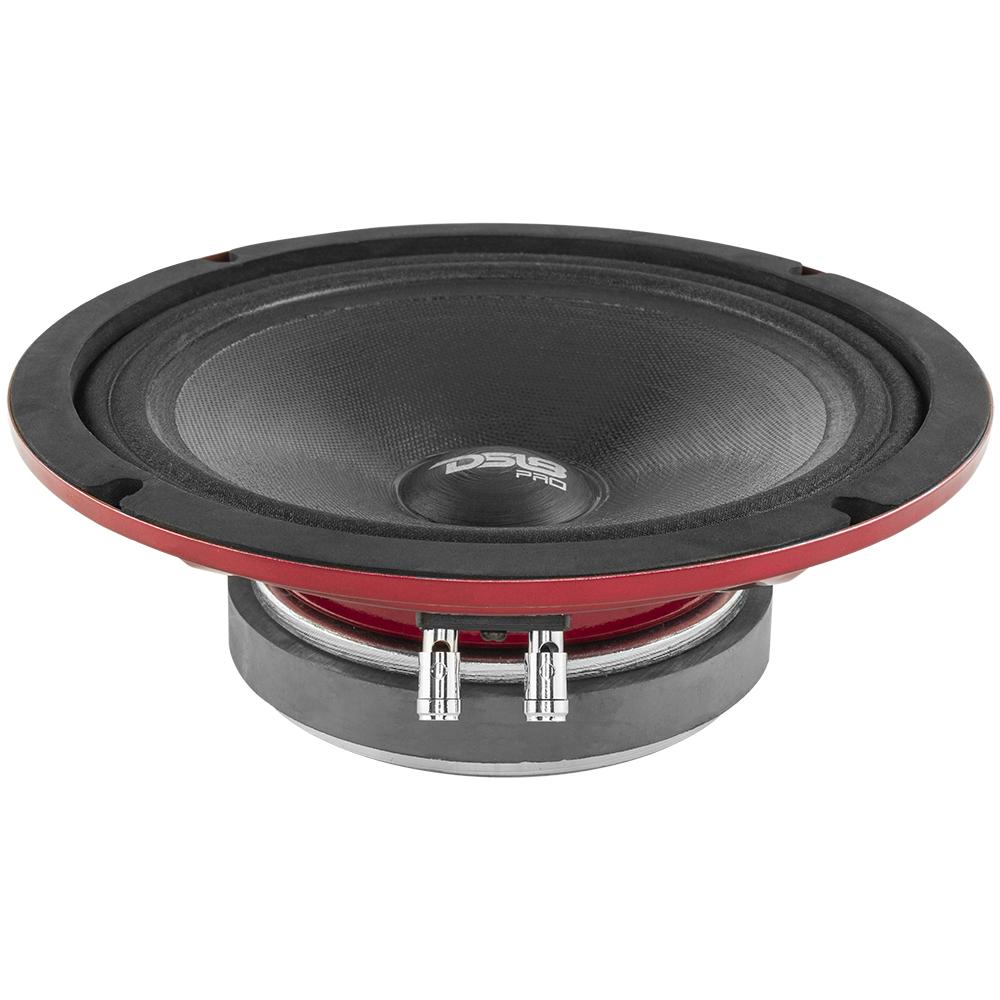

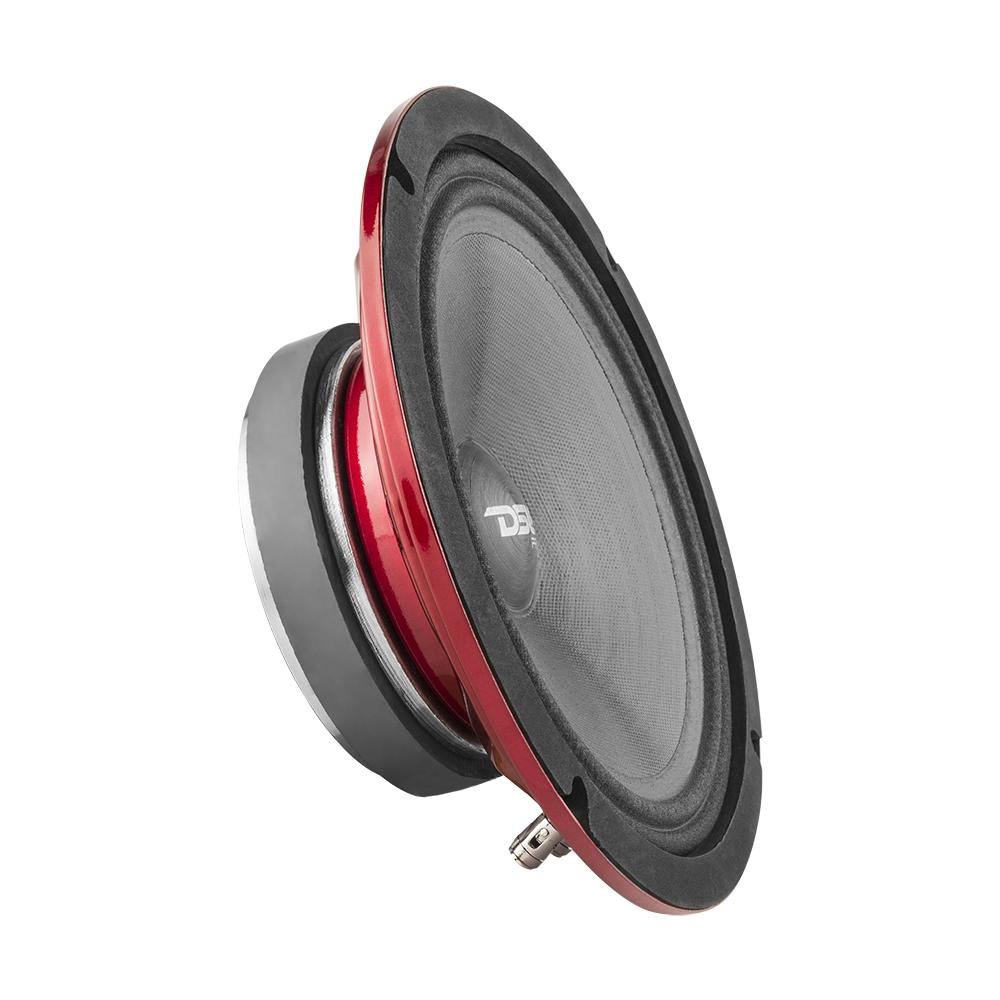

Slim 8" Motorcycle Midrange Speaker
The DS18 Slim midrange speaker was made for the motorcycle music fanatics. IPX6 rating, protecting it from any water that might come along the ride.
Specifications:
- Model: PRO-SM8.2
- Type: Midrange Loudspeaker
- Size: 8"
- RMS Power: 250W
- MAX Power: 500W
- Frequency Response: 65-12kHz
- Impedance: 2 ohm
- Sensitivity: 97dB
Materials:
- Surround: Cloth Edge
- Frame: Red Steel Basket
- Cone: Non-Pressed Paper Cone
- Magnet: Ferrite
- Voice Coil Wire: CCAW
Diameters:
- Voice Coil Size: 1.5"
- Magnet Size: 25 oz
- Mounting Depth: 2.45" (55.5mm)
- Cut-Out Dimension: 6.99" (177.4mm)
Parameters:
- Vas 11.321LTR
- Xmax 8 mm
- Fs 110 Hz
- Qms 3.881
- Qes 0.78
- Qts 0.718
- Re 2 Ohms
∗Sold as an Individual
Product Specifications
| Dimensions | 9" L × 9" W × 3" H |
|---|---|
| Shipping Weight | 4.65 lb |
| Country of Origin | CHINA |
| Harmonized Code | 8518.29.80.00 |
Documentation
| Owner's Manual | Download PDF |
|---|
