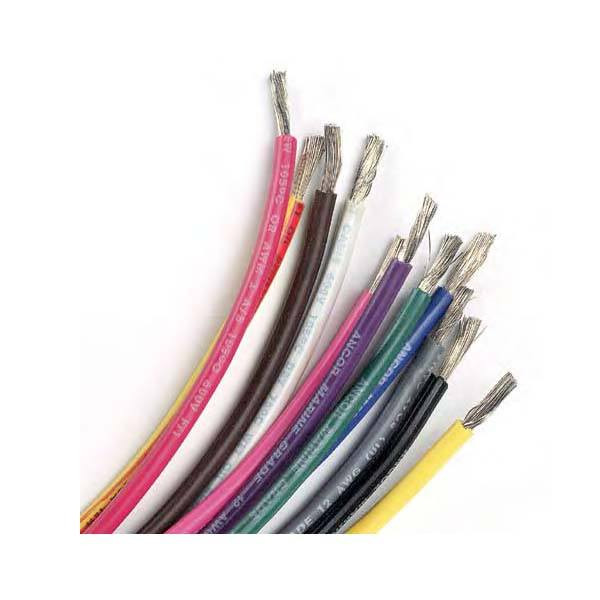

Ancor 16 Gauge Tinned Primary Marine Wire - Assorted Colors - MW
Ancor 16 Gauge Tinned Primary Marine Wire - Assorted Colors
THIS PRODUCT IS SOLD BY THE FOOT - Minimum Purchase Amount: 20
ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCOR’s proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105° C dry and 75° C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charterboat (CFR Title 46) and ABYC standards.
Product Features:
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.
- 16 AWG /1mm², UL 1426 Tinned Boat Cable
Specifications:
- Wire Size: 16 AWG, 1mm²
- Nominal O.D.: 1/8", 3.2mm
- Wire Diameter: 1.5mm
- Cir. Mil Area: 2600
- Ohms per 1000': 4.00
Wire Gauge Chart - Critical Applications (3% Drop)
Wire Gauge Chart - Non-Critical Applications (10% Drop)
